Energy Efficient Patio Doors: Homeowner’s Guide

Patio Door Types for Energy Efficiency

Energy efficient patio doors come in several styles, each affecting your home’s warmth and comfort differently. While many people focus solely on glass when thinking about thermal performance, the overall design plays a major role in preventing heat loss and keeping energy bills down.

Energy Ratings by Door Style

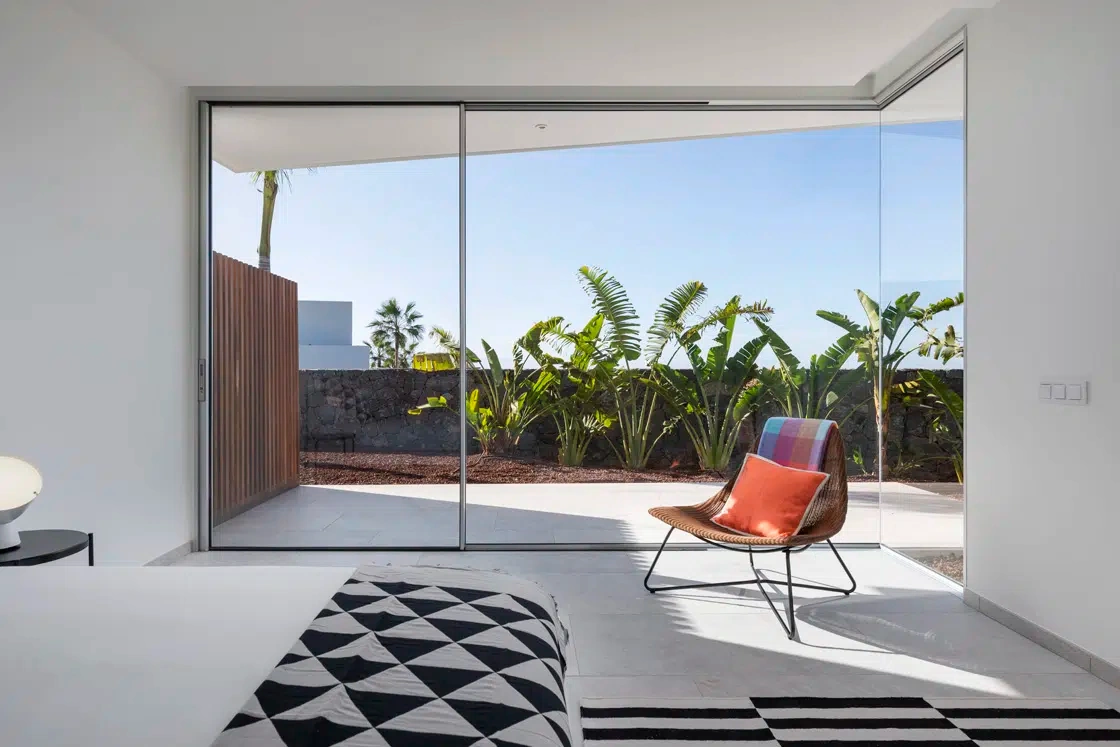

Energy efficient sliding doors often provide better thermal performance than their alternatives. The simple track system creates fewer gaps where cold air might enter, while the large glass panels let in plenty of winter sun. Energy efficient patio doors need double weather seals along their tracks, blocking drafts more effectively than hinged designs.

Bifolding energy efficient patio doors require careful design to match the thermal performance of sliders. Each panel join creates a potential weak point where heat can escape, though modern gaskets and weatherstripping help combat this issue. The higher frame-to-glass ratio in bifolds means less solar gain during winter months, but advanced thermal breaks in the frames help offset this drawback.

Frame-to-Glass Ratios

Energy efficient patio doors with a higher glass-to-frame ratio typically deliver better thermal performance. More glass means better heat retention, provided you’re using quality glazing. Sliding doors excel here, with their minimal frames allowing for larger glass panels that trap heat more effectively when the sun’s out.

Advanced Glass Technology

Modern energy efficient patio doors rely heavily on sophisticated glazing technology to keep homes warm. Glass innovation has moved far beyond basic double glazing, with new coatings and gases that work together to block heat transfer.

Double and Triple Glazing Comparison

Double glazed patio doors remain the most common choice in Britain. The sealed gap between panes creates an insulating barrier that cuts energy loss by up to half compared to single glazing. Argon gas fills this space in quality units, providing better insulation than standard air due to its density and thermal properties.

Triple glazing adds a third pane and two gas-filled spaces to energy efficient sliding doors, creating an extra barrier against the flow of heat. While this might seem like an obvious improvement, the benefits depend on your specific situation. In milder parts of Britain, the slight increase in thermal efficiency often doesn’t justify the higher cost and weight. However, floor to ceiling sliding doors, for example, might benefit from triple glazing due to their large surface area.

Advanced Glass Features

The most energy efficient patio doors use Low-E glass, which contains an invisible metal oxide coating. This microscopic layer reflects heat back into your home while letting sunlight pass through. Different types of Low-E coatings target specific wavelengths of light and heat, allowing you to prioritise either winter warmth retention or summer heat reduction.

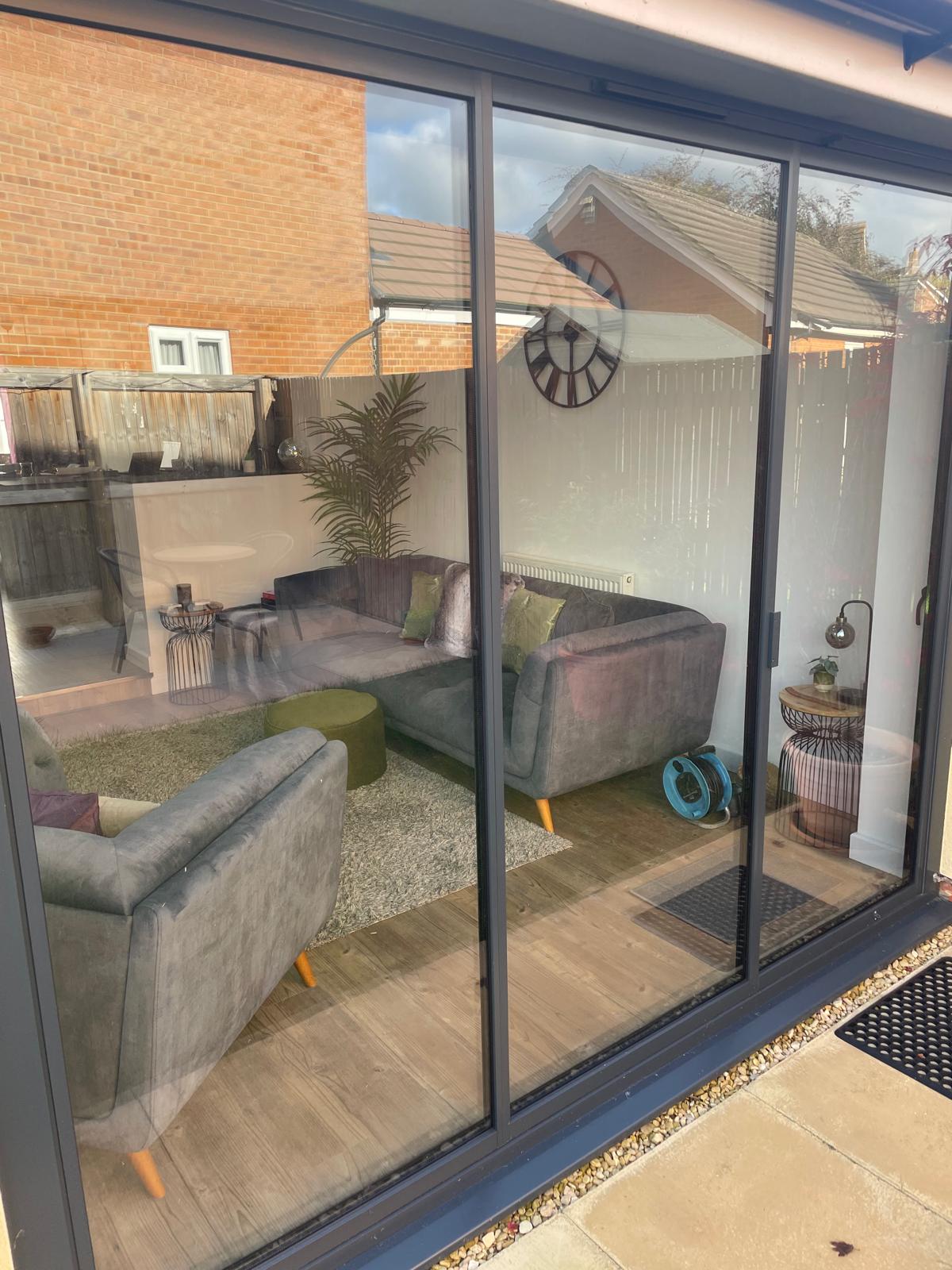

Energy efficient sliding glass doors combine multiple technologies to achieve better thermal performance. Modern units might pair Low-E coatings with warm edge spacers – the strips that separate the glass panes. These spacers, made from less conductive materials than traditional aluminium, help prevent heat from escaping around the edges of each sealed unit.

The position of coatings and gas fills matters just as much as their presence. Energy consumption drops most when Low-E coatings sit on the inner surfaces of the outer panes, where they can’t be damaged by weather or cleaning. The exact arrangement of these elements can mean the difference between average and excellent performance.

Energy Rating Systems

Clear standards help buyers compare different glass options. The British Fenestration Rating Council (BFRC) tests energy efficient patio doors and assigns ratings from A++ to E, measuring heat loss, air leakage, and solar gain together. This rating considers the entire door unit, not just the glass.

U-values measure how quickly heat passes through materials, with lower numbers indicating better insulation. While new energy efficient patio doors might advertise U-values below 1.2, these figures often represent only the centre of the glass. Actual performance depends on the entire unit, including frames and seals.

Glass specifications can seem overwhelming, but they directly impact your comfort and bills. Each improvement in thermal performance typically raises the price, but better-performing units usually pay for themselves through reduced heating costs. In exposed locations or north-facing installations, investing in higher-spec glass often makes financial sense.

The design of sealed units has improved substantially over recent decades. Modern energy efficient patio doors use warm edge spacer bars and specialized sealants that last longer than older materials. These components work together to prevent moisture from penetrating between panes, which would otherwise reduce insulation and cause condensation.

Frame Materials and Thermal Performance in Energy Efficient Patio Doors

The frame material of energy efficient patio doors affects both insulation and long-term performance. Each option brings distinct thermal properties that influence how well the doors retain heat and impact your heating bills.

Modern Aluminium Performance

Energy efficient sliding patio doors made from aluminium have improved markedly from earlier designs. Modern metal patio doors incorporate polyamide thermal breaks—strips of non-conductive material that separate the inner and outer sections of the frame. These breaks reduce thermal conductivity, helping aluminium frames match the insulation levels of other materials.

Minimal sliding doors often use aluminium frames, as the material’s strength allows for slimmer profiles.

While older aluminium patio doors earned a poor reputation for heat loss, current manufacturing techniques create frames that rival other materials for thermal performance. The key lies in the thermal break design—wider breaks and multiple chambers within the frame reduce heat transfer substantially.

Energy efficient patio doors with minimal sightlines don’t have to sacrifice warmth for style. Advanced aluminium frames now incorporate multiple thermal zones, each adding another barrier to heat movement. The outer frame sections can feel cold to touch while the inner sections maintain room temperature, proving the effectiveness of these thermal barriers.

UPVC Thermal Properties

UPVC doors remain a popular choice for their natural insulating qualities. Energy efficient patio doors made from UPVC contain multiple internal chambers that trap air, creating additional thermal barriers. Modern profiles use more chambers than older designs, improving their ability to block heat transfer.

The molecular structure of UPVC itself helps with energy savings. Unlike metal, plastic naturally resists heat flow, giving UPVC frames an inherent advantage. Energy efficient sliding glass doors with UPVC frames often achieve impressive thermal ratings without needing additional insulation technologies.

UPVC patio doors maintain their thermal performance throughout their lifespan. The material doesn’t corrode or degrade when exposed to weather, helping seals stay tight and preventing gaps that could let heat escape. This consistent performance means stable heating bills year after year.

Composite Frame Benefits

Composite materials combine the advantages of different materials into single energy efficient patio doors. These frames typically pair an aluminium exterior with internal components designed specifically for thermal performance. The result delivers both durability and excellent insulation.

Recent innovations in composite technology have produced frames that outperform traditional materials. Energy efficient patio doors using these hybrid designs can achieve thermal ratings previously thought impossible with standard frames. The secret lies in carefully layered materials, each chosen for specific thermal properties.

The core of composite frames often uses materials developed for aerospace applications, where thermal management is essential. When used in energy efficient sliding doors, these materials create an almost complete thermal break between indoor and outdoor temperatures. The exterior aluminium layer protects against weather while playing little part in heat transfer.

Frame choice affects more than just thermal performance. Energy efficient patio doors need frames that maintain their shape through temperature changes to prevent warping that could create drafts. Composite materials excel here, combining the stability of aluminium with the insulation properties of advanced polymers.

Advanced composites can now mimic the appearance of any traditional material while providing superior insulation. Energy efficient patio doors using these frames give homeowners the freedom to choose any style without compromising on thermal performance. This flexibility, combined with their excellent insulation, makes composite frames increasingly popular for high-performance door installations.

Long-term Energy Performance

Proper maintenance keeps energy efficient patio doors working at their best. Even the highest-quality doors lose their thermal properties without regular checks and upkeep, leading to energy waste and higher bills over time.

Effective Draft Prevention

Energy efficient patio doors depend on proper sealing to maintain their insulation value. Weather stripping around the frame creates the first barrier against drafts, while brush seals along the bottom edge stop air from creeping underneath. These seals need regular inspection—worn or compressed seals can let as much heat escape as a small window left open.

Modern energy saving patio doors use multi-layer sealing systems that need specific care. The rubber compounds in these seals can harden or crack over time, especially when exposed to strong sunlight. A quick monthly check helps spot early signs of wear, preventing the gradual decline in thermal insulation that many homeowners miss until their heating bills spike.

The tracking system in energy efficient sliding doors requires particular attention. Dirt and debris in the tracks can force the door slightly out of alignment, creating tiny gaps in the seals. These small spaces might seem insignificant, but they can reduce energy performance substantially when added together.

Seal Performance Problems

Energy efficient sliding glass doors often show their age first around the edges. Gaskets can shrink, creating gaps that let warm air escape. While replacing individual seals might seem costly, it’s far cheaper than heating the outdoor space through poorly maintained doors.

The corners of energy efficient patio doors need special attention during maintenance. These points, where different seals meet, often fail first. Poor corner sealing can cancel out the benefits of advanced glass technology and thermal breaks, turning top-performing doors into energy drains.

Installation Quality

Building regulations require specific standards for fitting aluminium doors and other energy efficient patio doors. Proper installation involves precise shimming and careful levelling to ensure even pressure on all seals. When installers rush these steps, doors may never achieve their rated thermal performance.

Energy efficient patio doors need proper anchoring to prevent frame distortion. Over time, insufficient fixing points can allow the frame to flex slightly, breaking the thermal barrier. This issue often appears gradually—a door that worked perfectly at first might develop drafts years later due to poor initial installation.

Professional fitting makes a massive difference to long-term performance. Energy efficient patio doors installed by qualified technicians typically maintain their thermal properties longer than DIY installations. The initial extra cost often pays back through consistent energy savings over the door’s lifetime.

Maintenance Requirements

Regular cleaning helps energy efficient patio doors maintain their performance. Dirt around seals can prevent them from compressing properly, while grime in drainage channels can cause water to back up and damage the thermal breaks. Simple monthly cleaning with appropriate products helps avoid these issues.

Track maintenance matters just as much as seal care for energy efficient sliding doors. The rollers and guides need periodic lubrication to work smoothly—when doors don’t close fully due to stiff operation, they can’t seal properly against heat loss.

The thermal breaks in energy efficient patio doors can fail if exposed to standing water. Keeping drainage holes clear prevents water accumulation that might damage these critical components. A quick check during cleaning helps spot blocked drainage before it causes problems.

While energy efficient patio doors might seem fine during daily use, experts can spot early signs of seal failure or alignment problems. This preventive approach helps maintain the original energy performance specifications throughout the door’s life.
