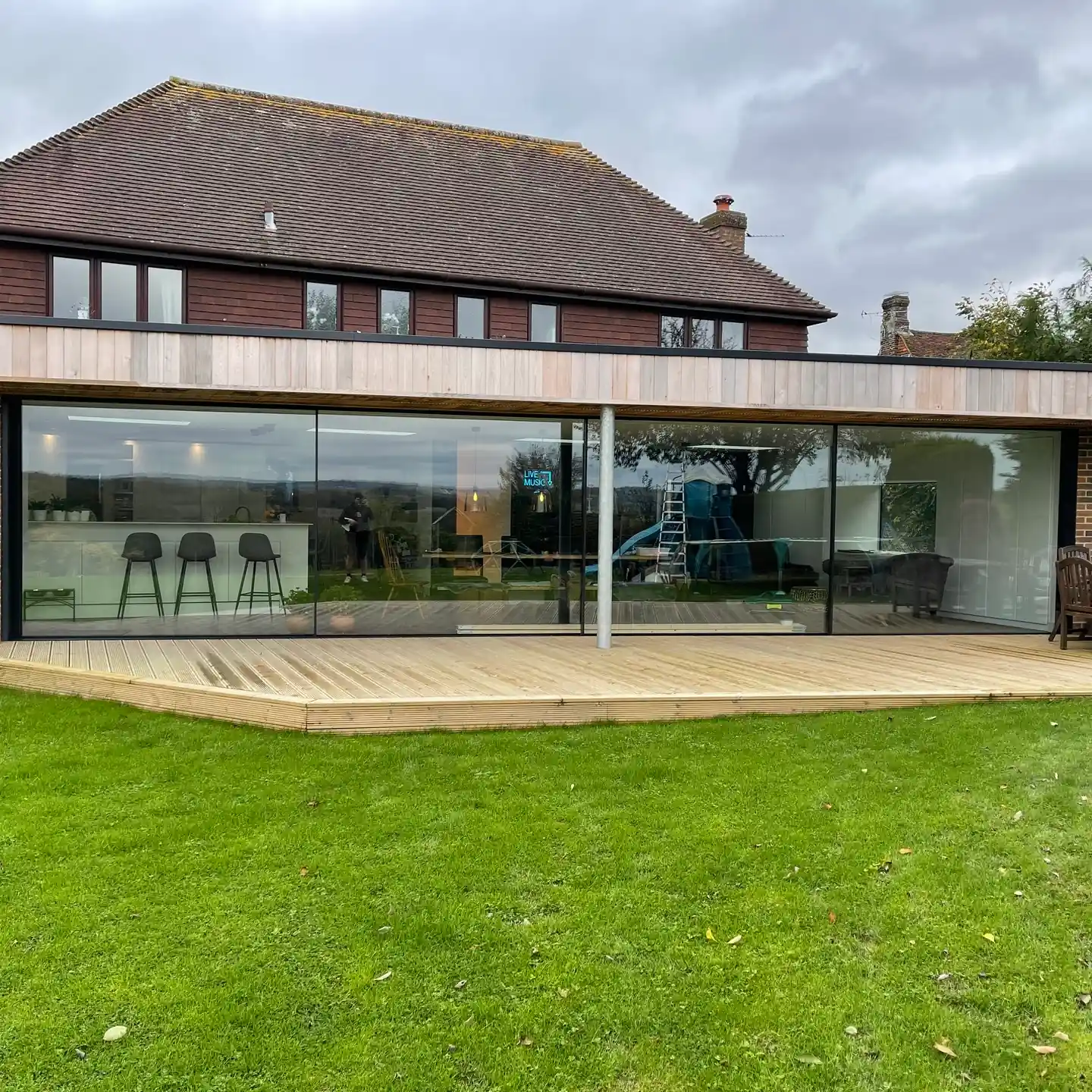

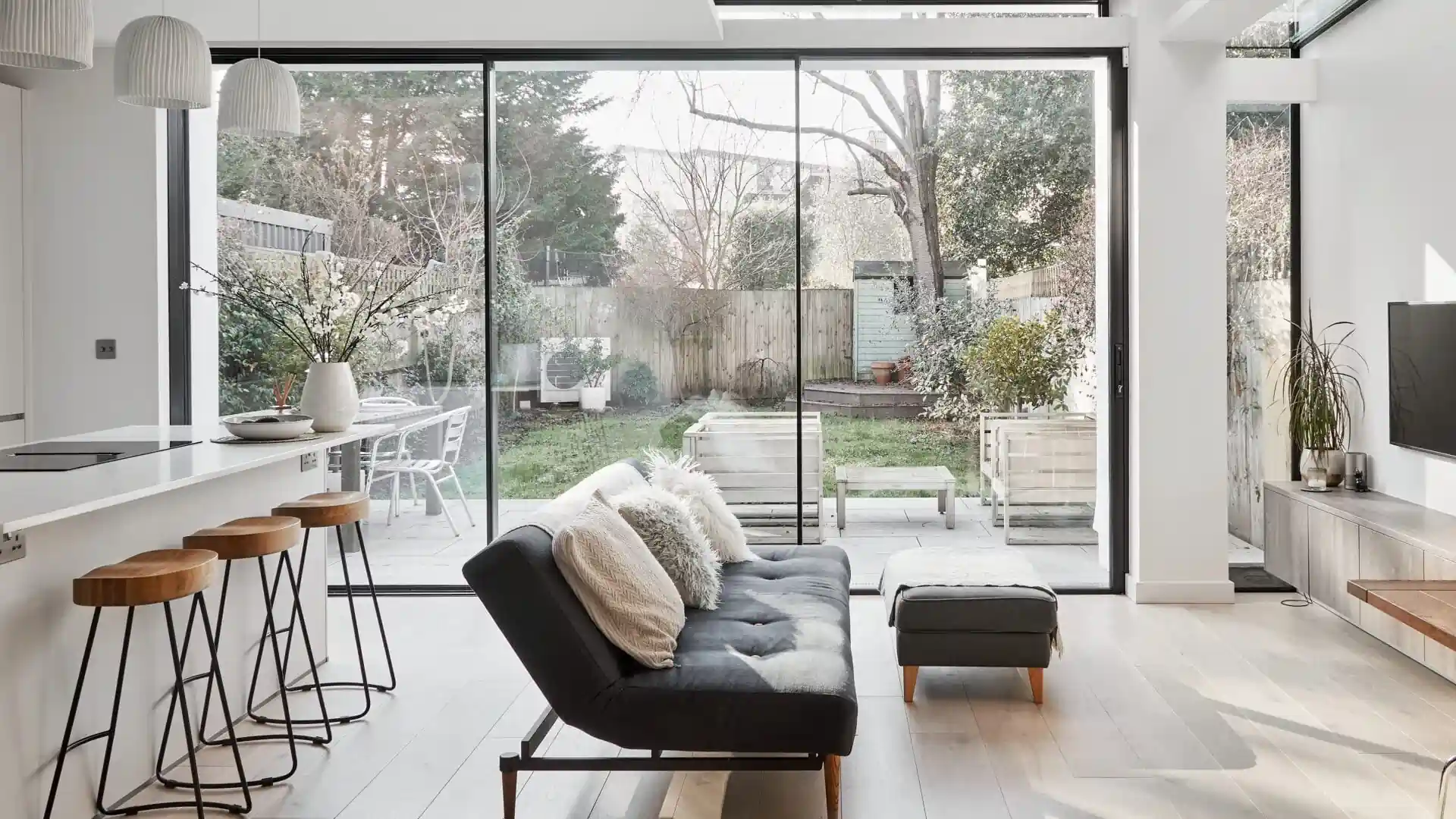

• slimline sliding doors sd20 5
  • slimline sliding doors sd20 7
  • slimline sliding doors sd20
  • slimline sliding doors sd20 6
  • Slimline sliding patio doors
  • slimline sliding doors sd20 2
  • slimline sliding doors sd20 3
  • slimline sliding doors sd20 4
  • slimline sliding doors sd20 8

Slimline Sliding Patio Doors (SD20) Make your space feel brand new.

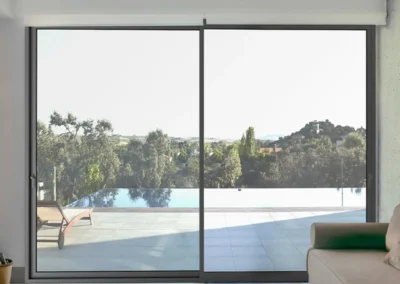

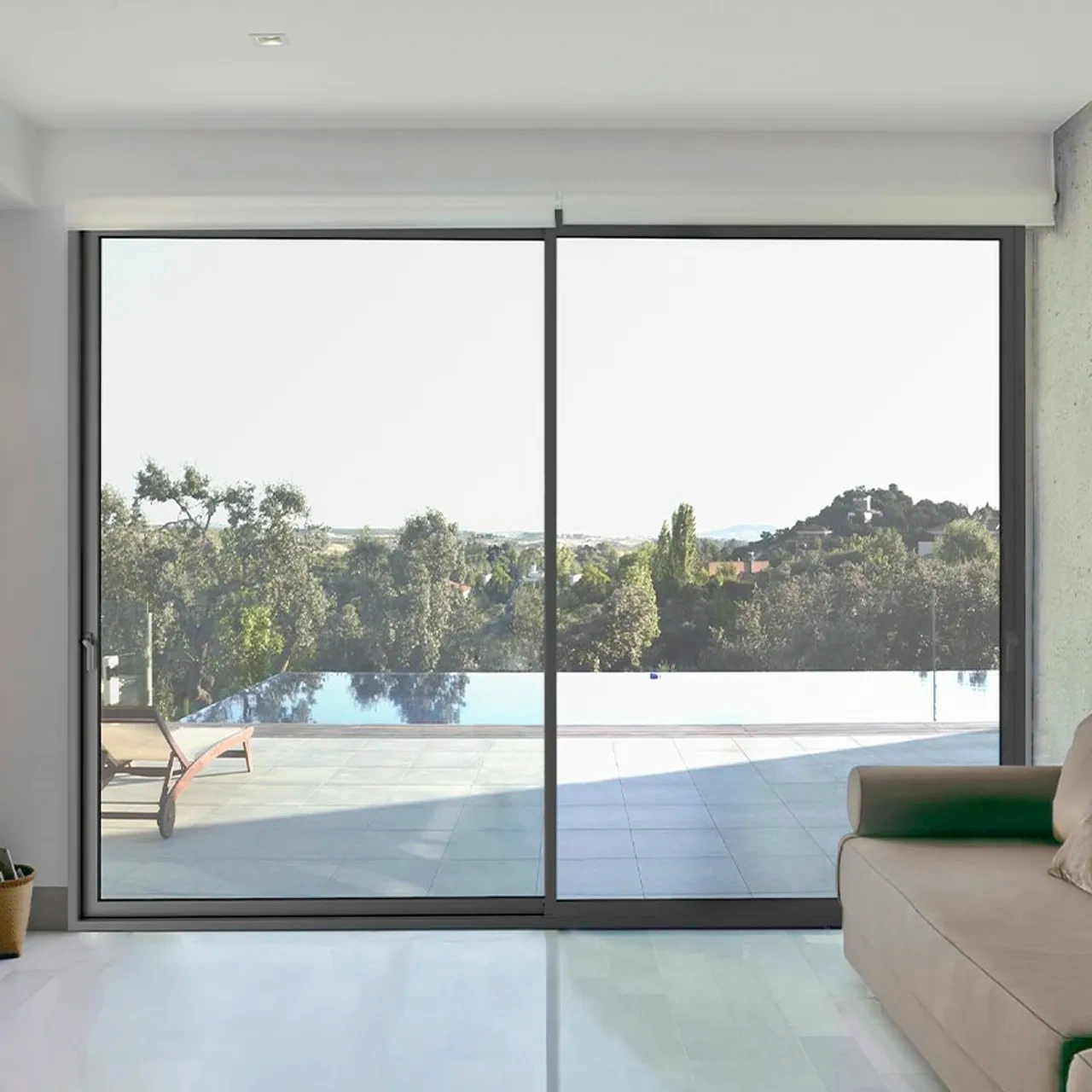

slimline sliding doors 21

Meet the Slimline Sliding Patio Doors

With ultra-slim frames and a sightline of only 20 mm, these doors create a stunning “glass wall” effect, offering over 90% glass for uninterrupted, panoramic views.

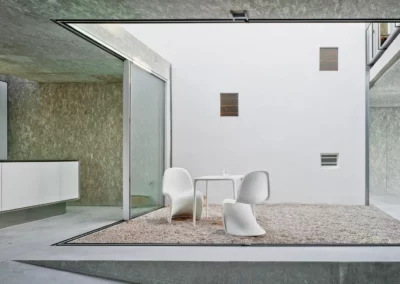

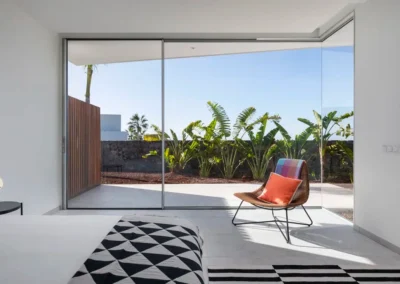

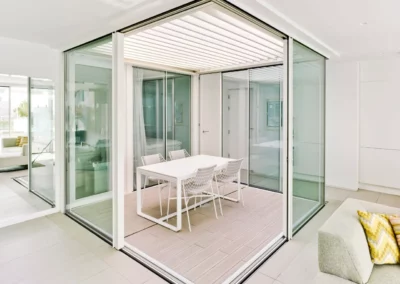

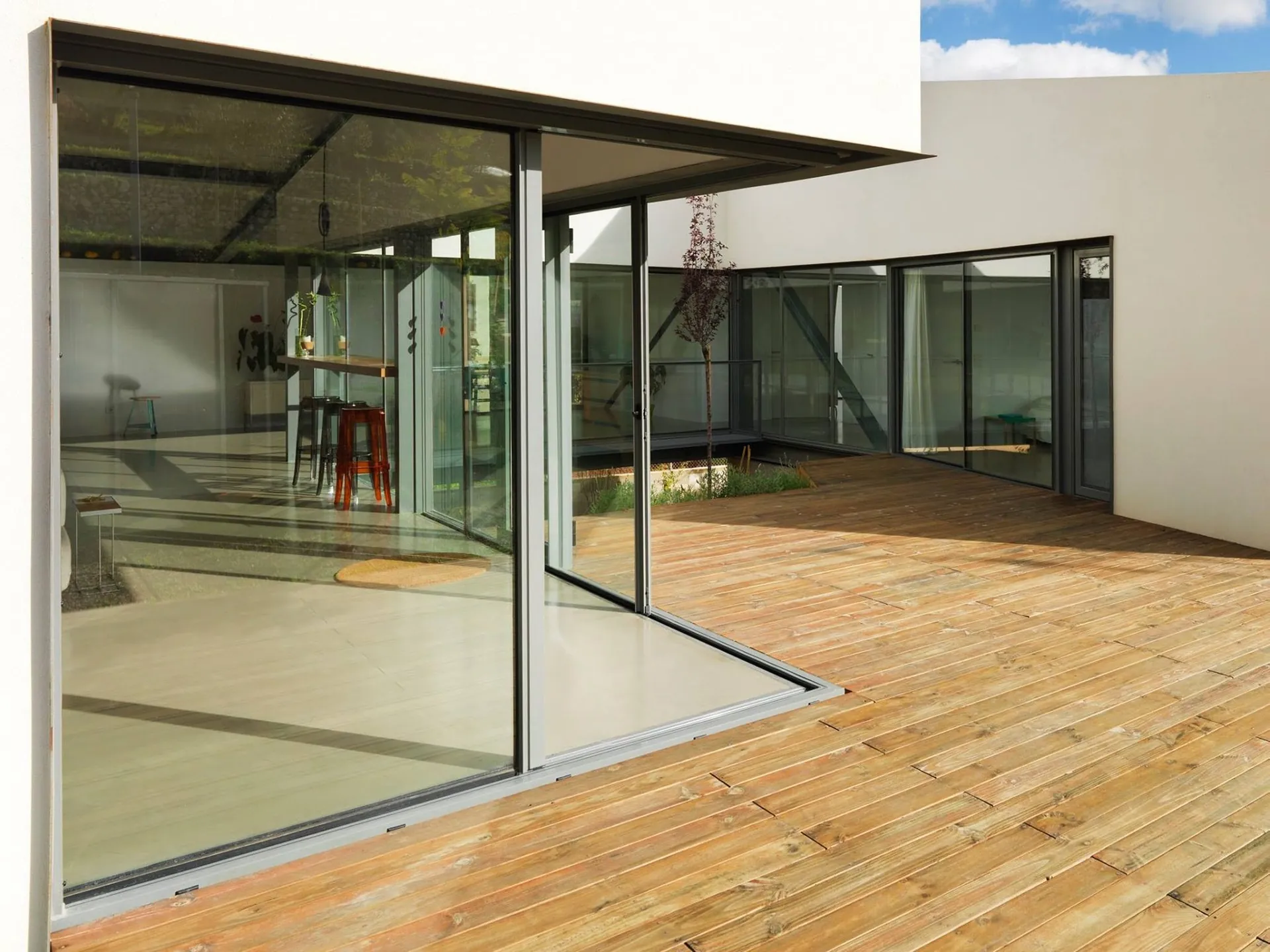

Perfect for Corner Installations

These doors can also be custom-made for corner openings, allowing you to create stunning designs and large inviting spaces within your home.

Vision Glass Doors slimline sliding patio doors

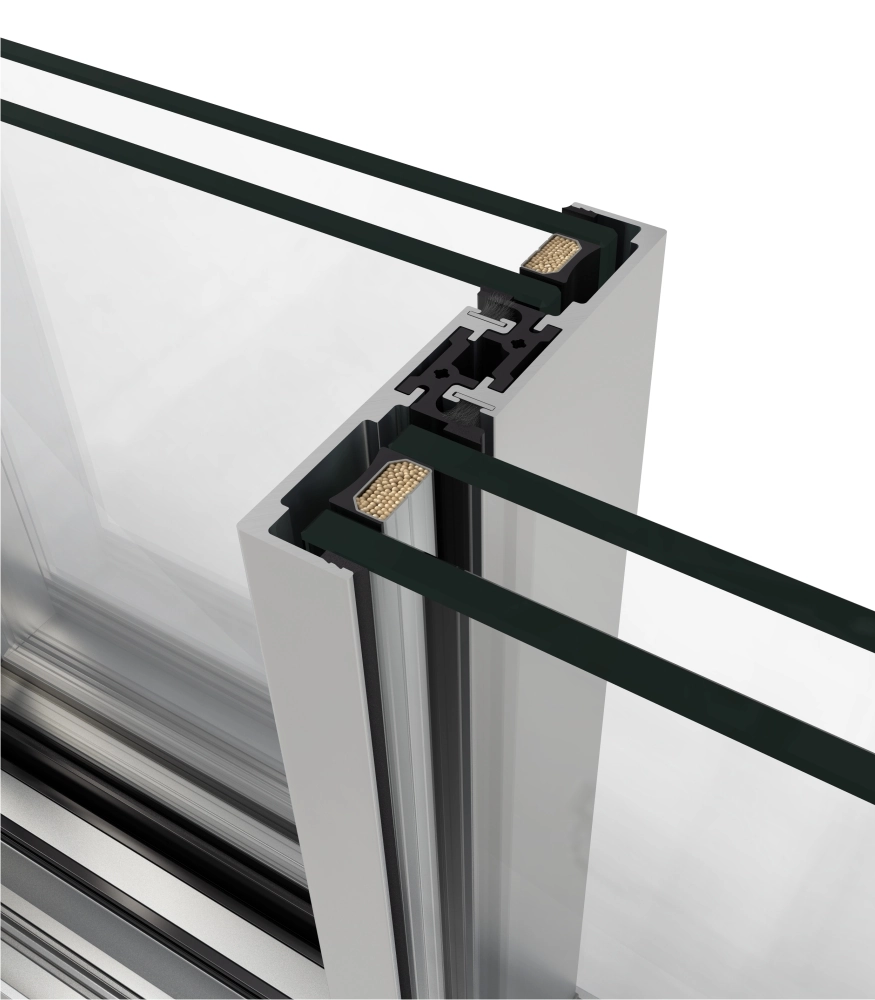

Slimline sliding patio doors close-up

Super Slimline Frames

Boasting a slim 20mm mullion, these minimalist doors offer an almost frameless appearance, bringing in plenty of natural light for a real wow factor.

Slimline Sliding Patio Doors Features

View technical specifications
  • Double glazed with toughened safety glass for your peace of mind.
  • Excellent thermal performance to keep out the cold in winter.
  • Great sound insulation to reduce outside noise and minimise distractions.

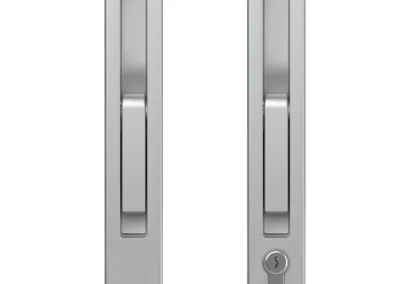

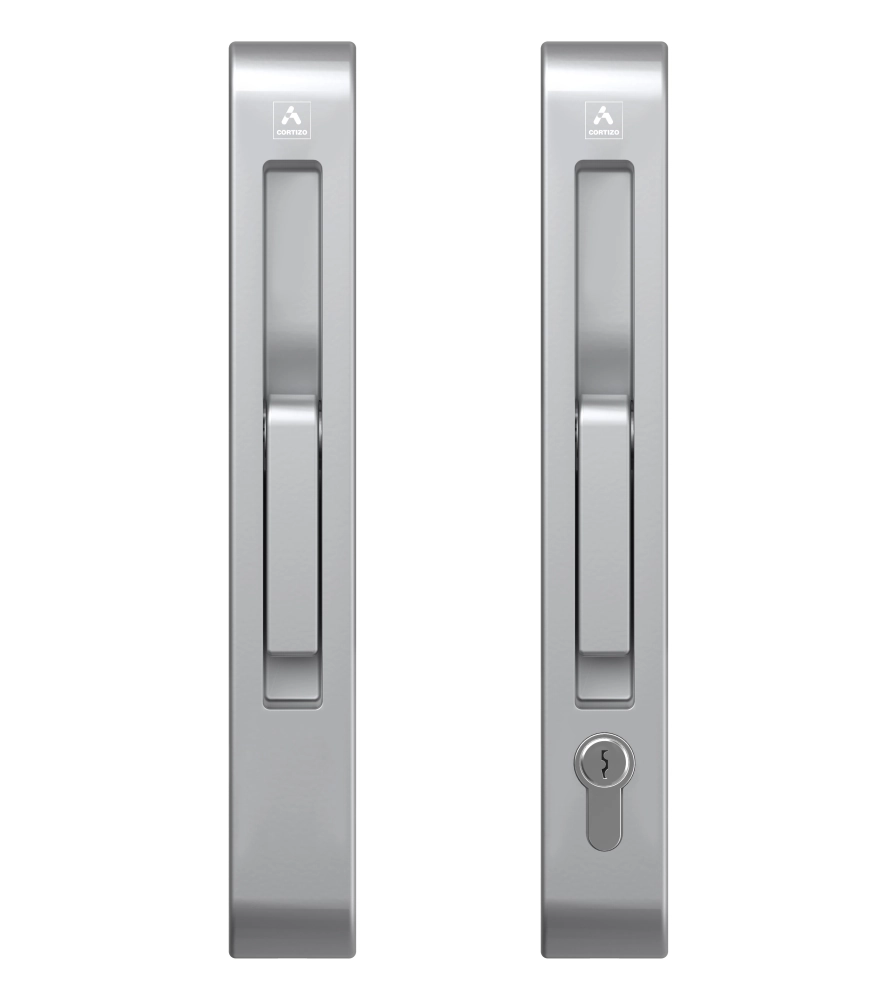

  • Premium security with a 5-point lock integrated into the recessed handle.

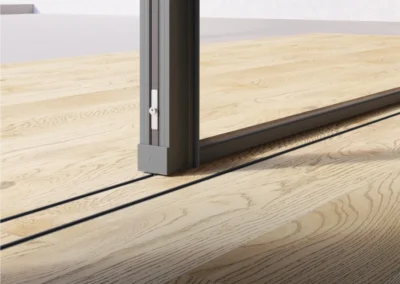

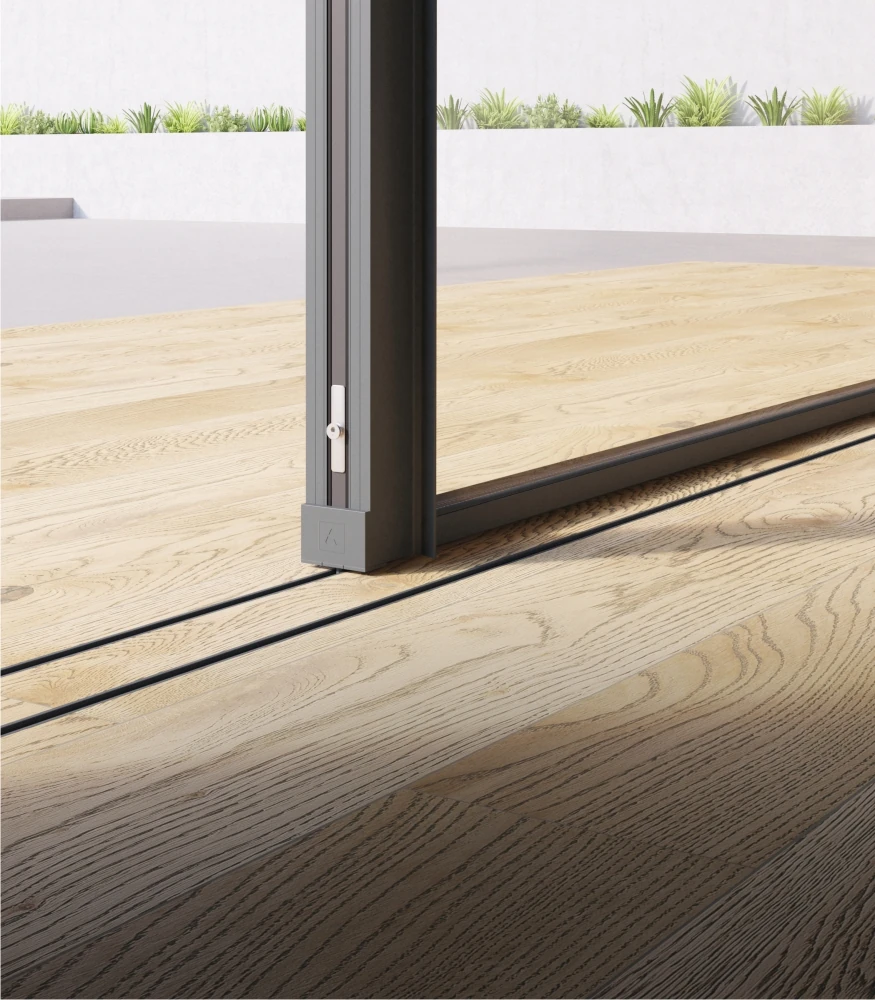

  • Designed for accessibility with a fully recessed floor track.
  • Adaptable to your needs with up to 6 door panels. Options include single, double, or triple tracks, and corners.

Slimline Sliding Patio Doors Specifications

View full technical specifications

Configuration Options

  • Sliding door panels: 1, 2, 3, 4, or 6 panels
  • Track options: 1, 2, or 3 tracks
  • Corner installations:
    90° corner door panels without a mullion, for both inward and outward opening configurations
  • Pocket door options:
    1, 2, 3, or 4 door panels that slide into the wall cavity
Slimline sliding patio doors opening possibilities
Vision Glass Doors Slimline Sliding Patio Doors SD20 side view
Vision Glass Doors Slimline Sliding Patio Doors SD20 side view
Vision Glass Doors Slimline Sliding Patio Doors SD20 side view
Vision Glass Doors Slimline Sliding Patio Doors SD20 side view

Standards

Air permeability (EN 12207): Class 4 Water tightness (EN 12208): Class 7A Wind resistance (EN 12210): Class C5

Insulation

Transmittance: UW ≥ 1.3 W∕m2K
Max acoustic insulation: RW = 41 dBA

Maximum dimensions/panel

Width: 2500 mm
Height: 3000 mm
Weight: 320 kg

Product Photos

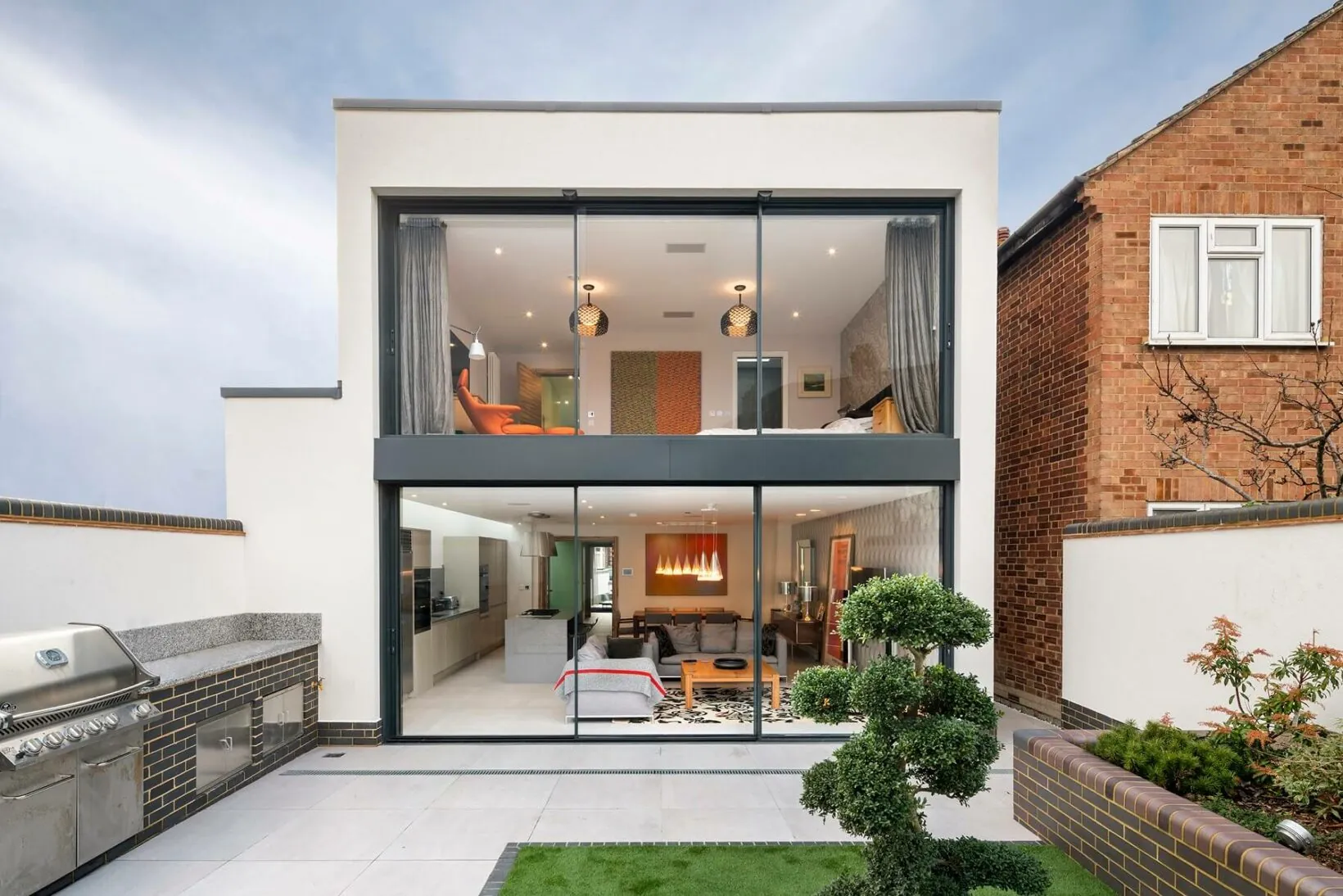

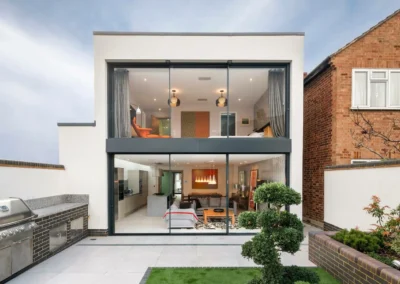

slimline sliding doors 12

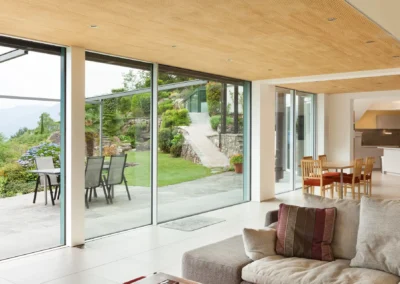

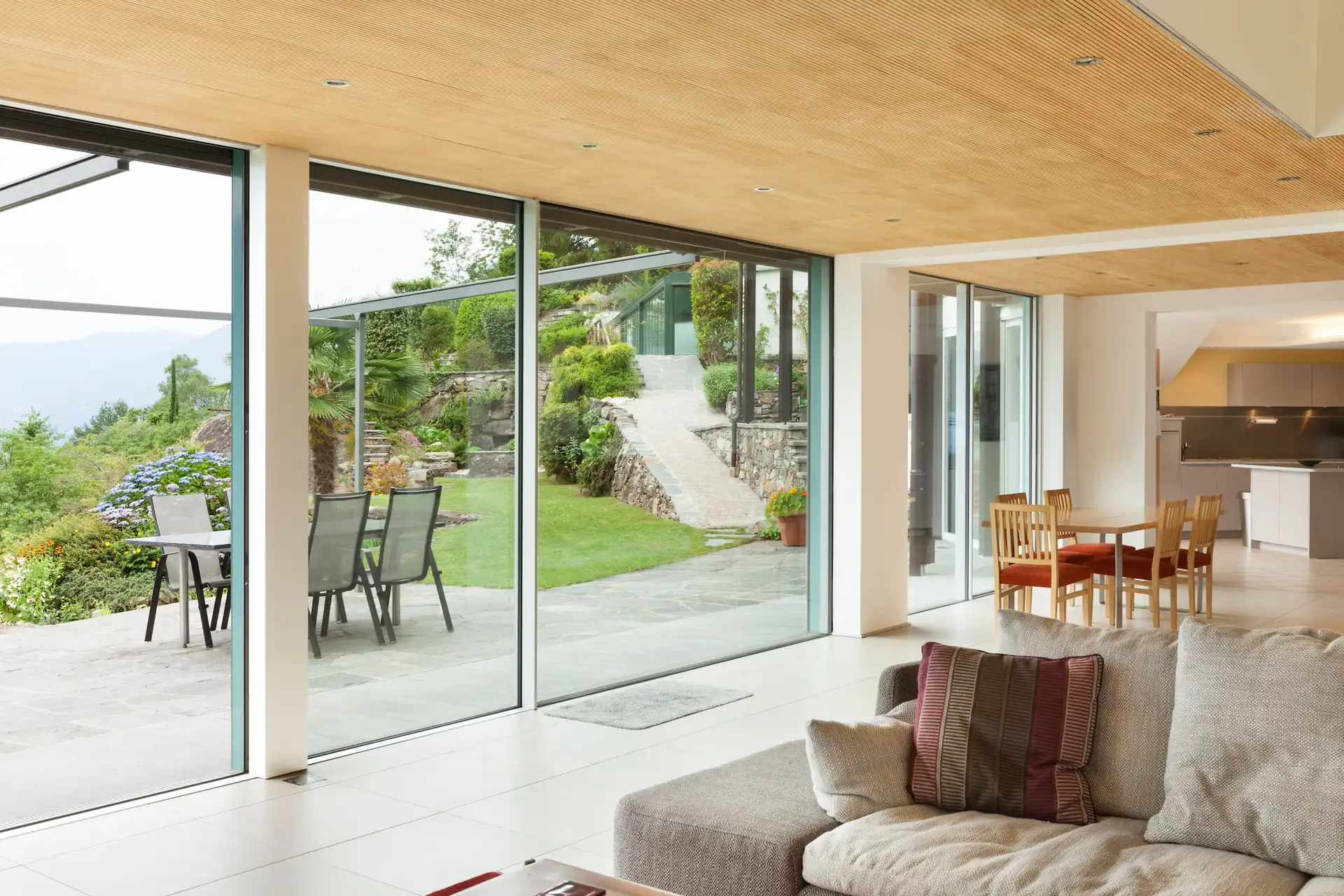

slimline sliding doors 17
Outside sliding doors

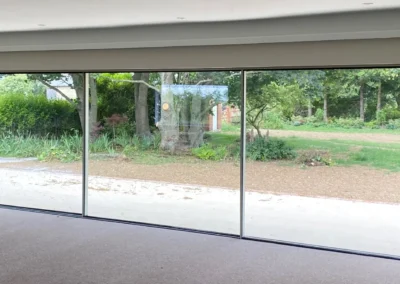

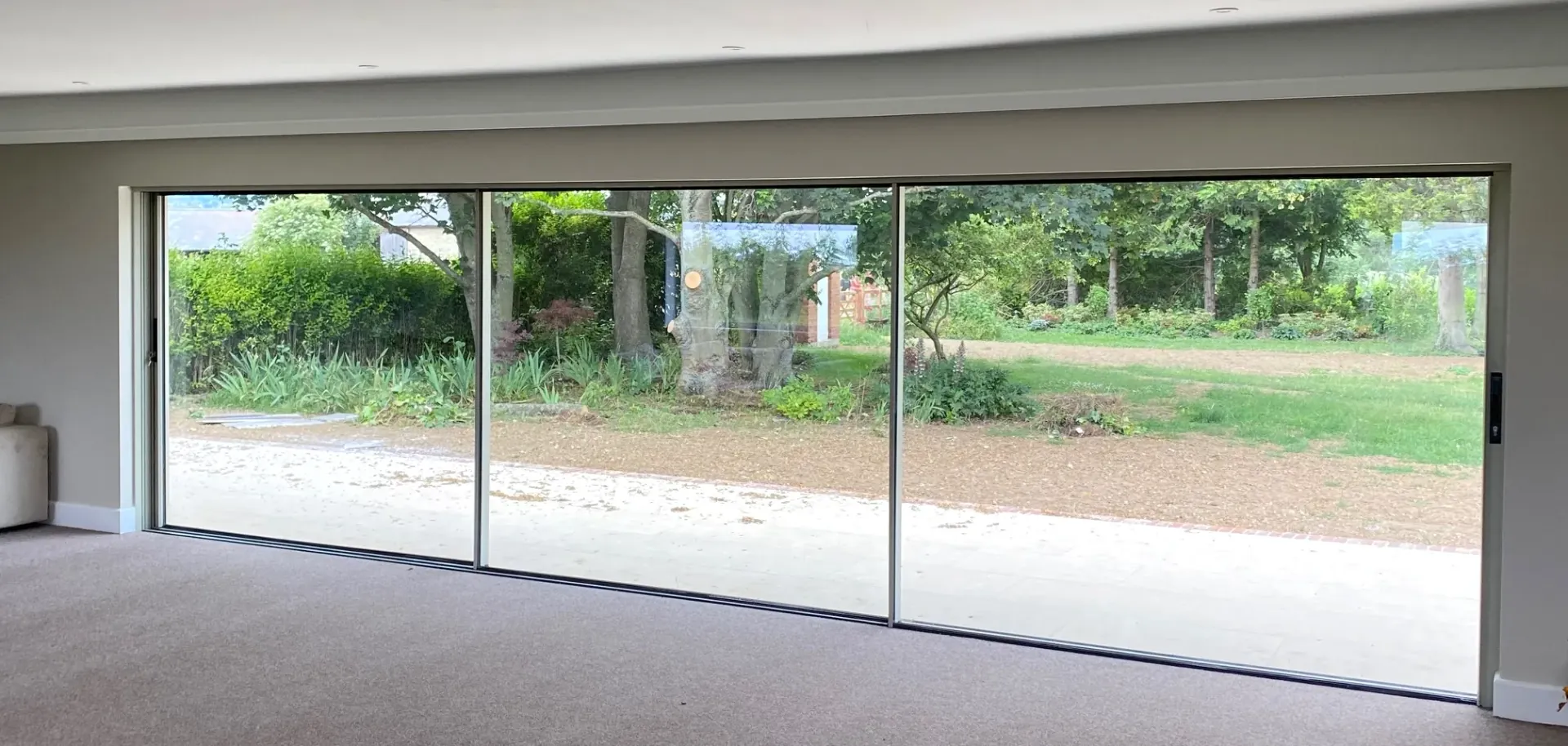

slimline sliding doors 19

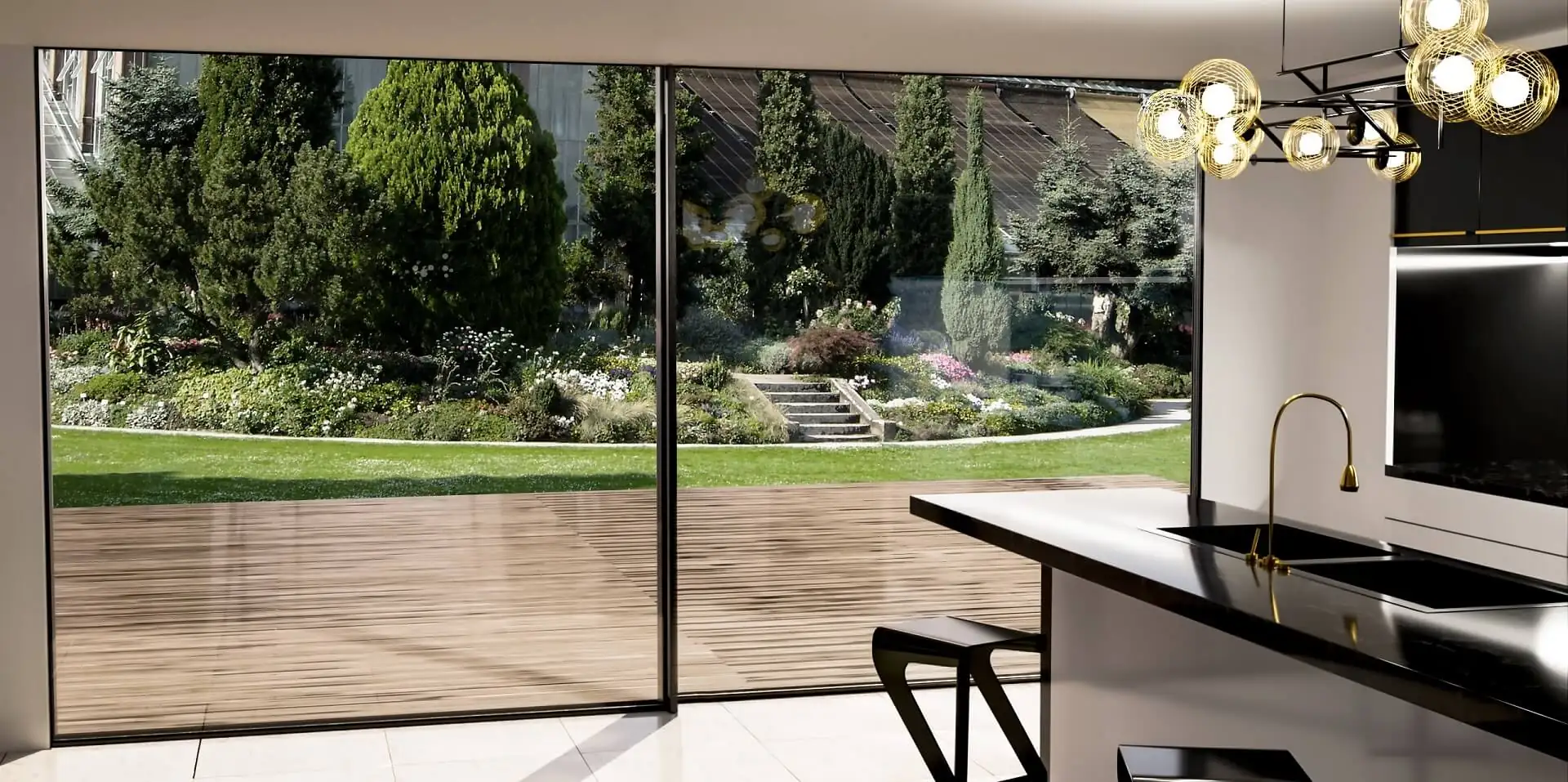

slimline sliding doors 14
Slimline sliding patio doors

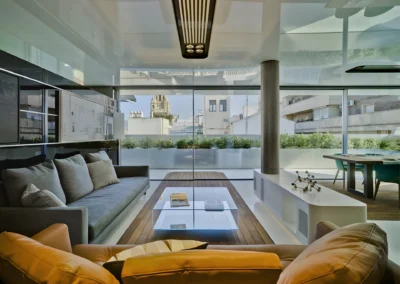

slimline sliding doors 3
Slimline sliding patio doors

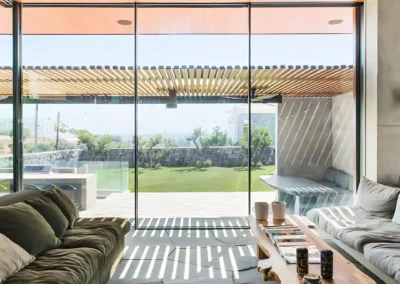

slimline sliding doors 25
Slimline sliding patio doors

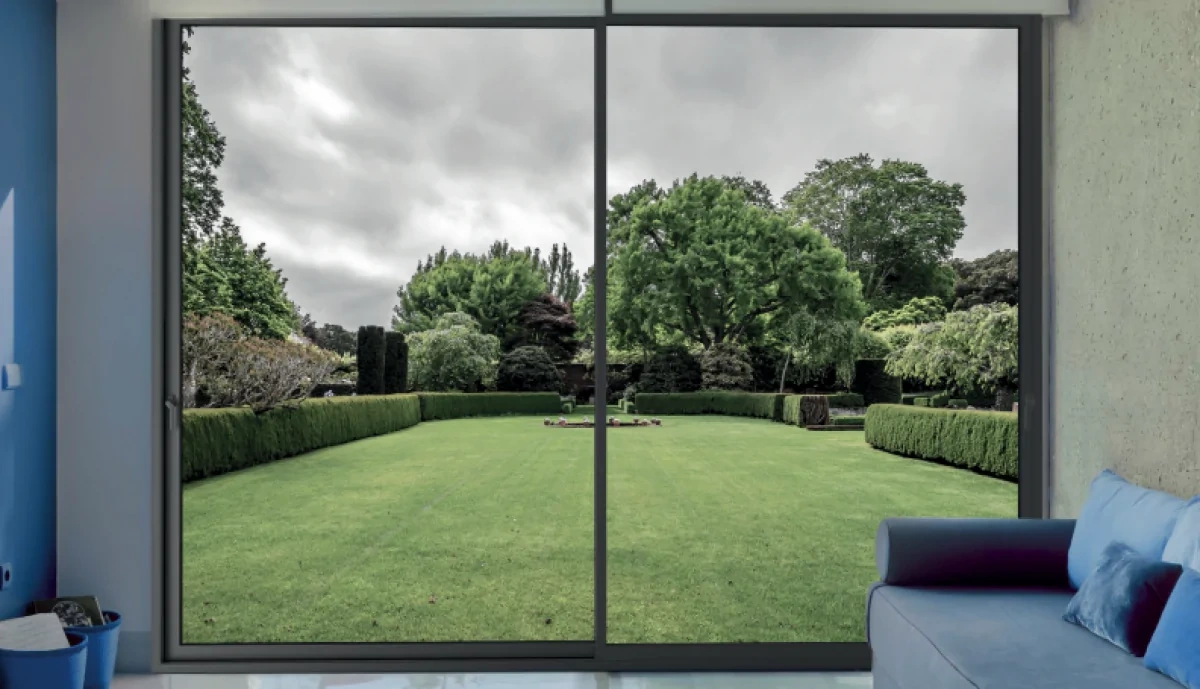

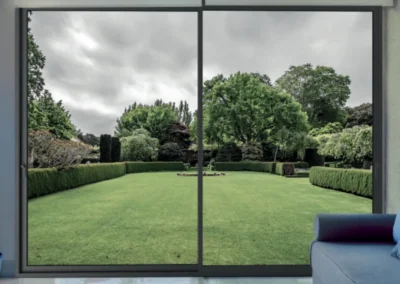

slimline sliding doors 22

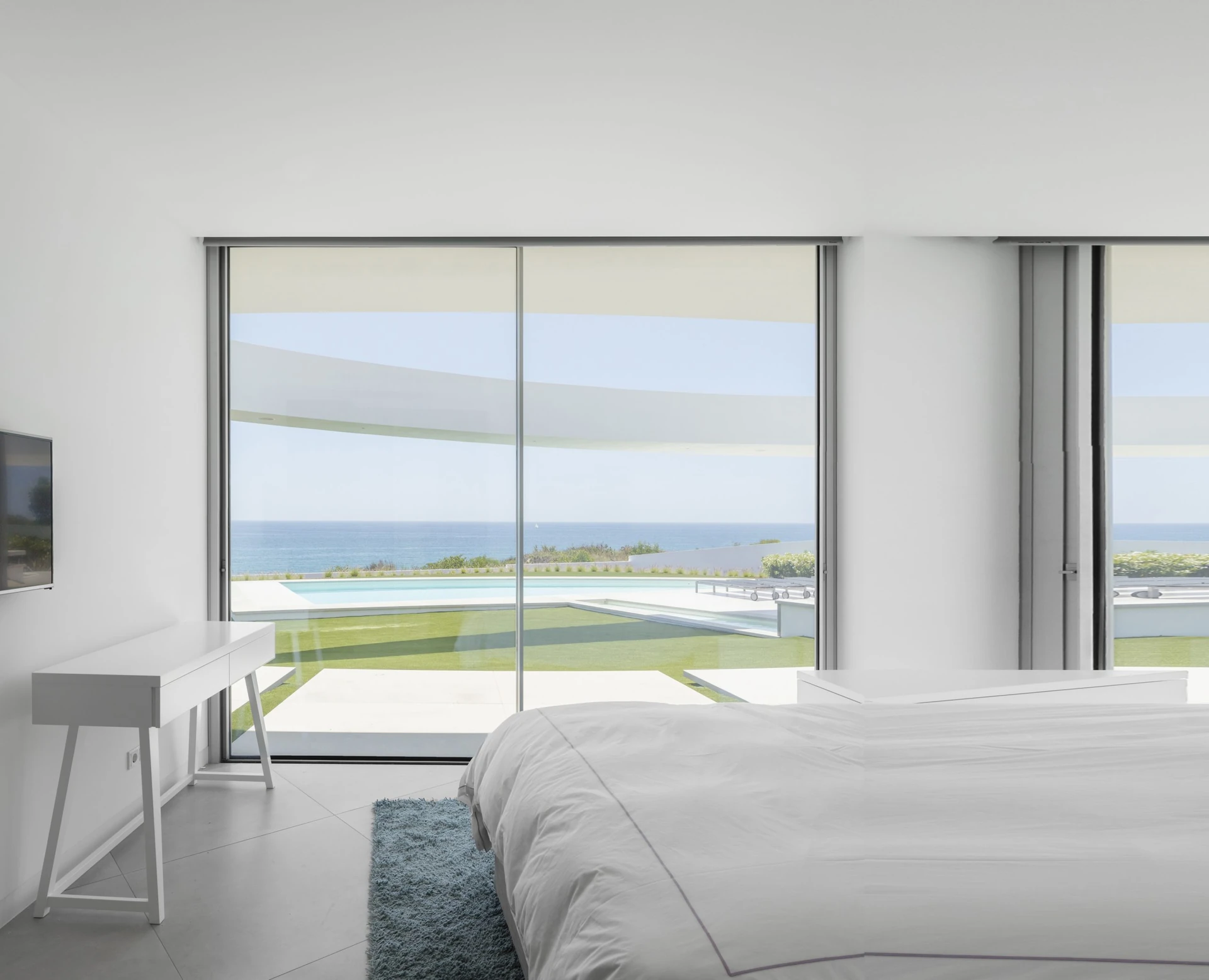

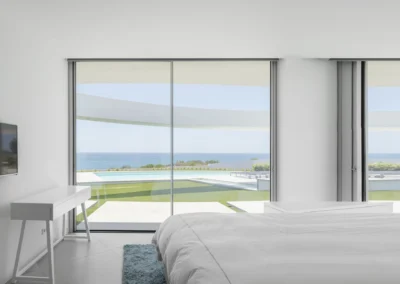

slimline sliding doors 18
slimline sliding patio doors square 2 Vision Glass Doors

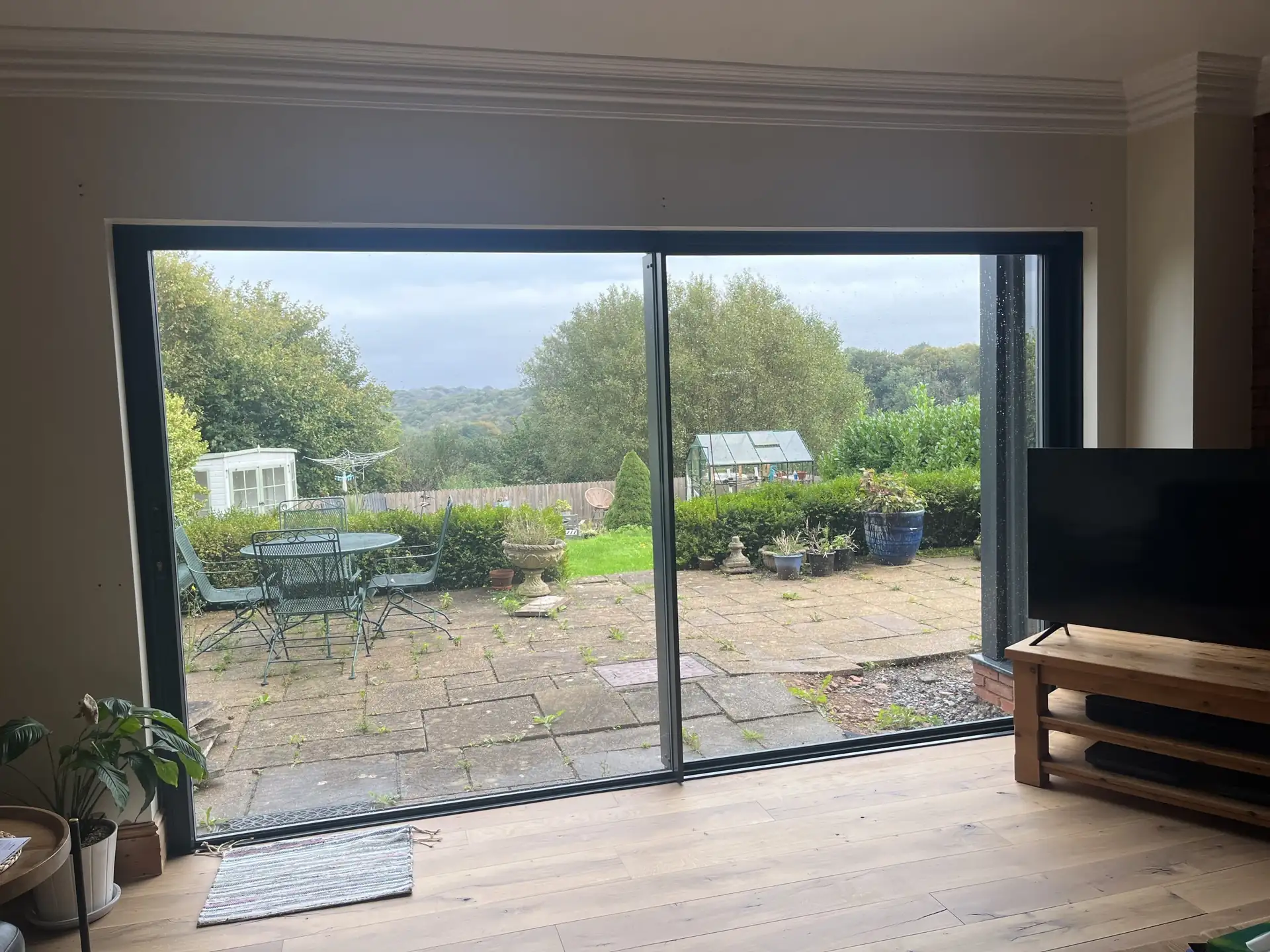

slimline sliding doors 1

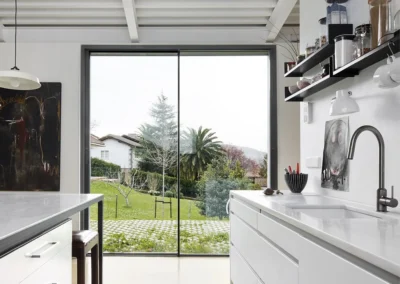

slimline sliding doors 2
slimline sliding doors 4
slimline sliding doors 5
slimline sliding doors 6

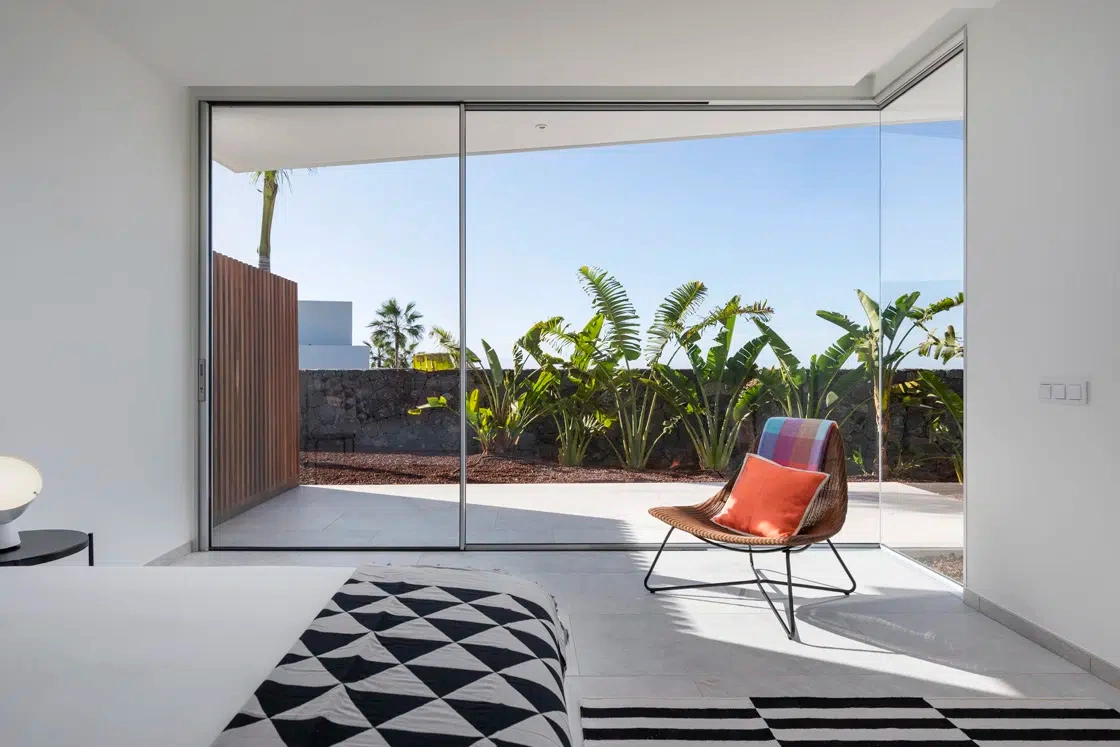

slimline sliding doors 7
Low threshold sliding patio doors

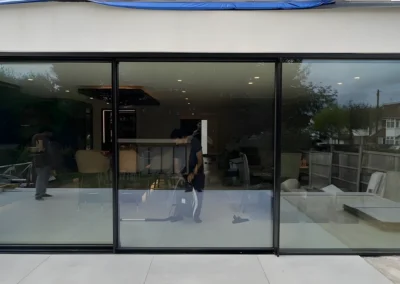

slimline sliding doors 8
slimline sliding doors 9

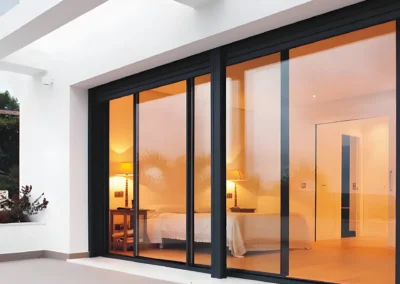

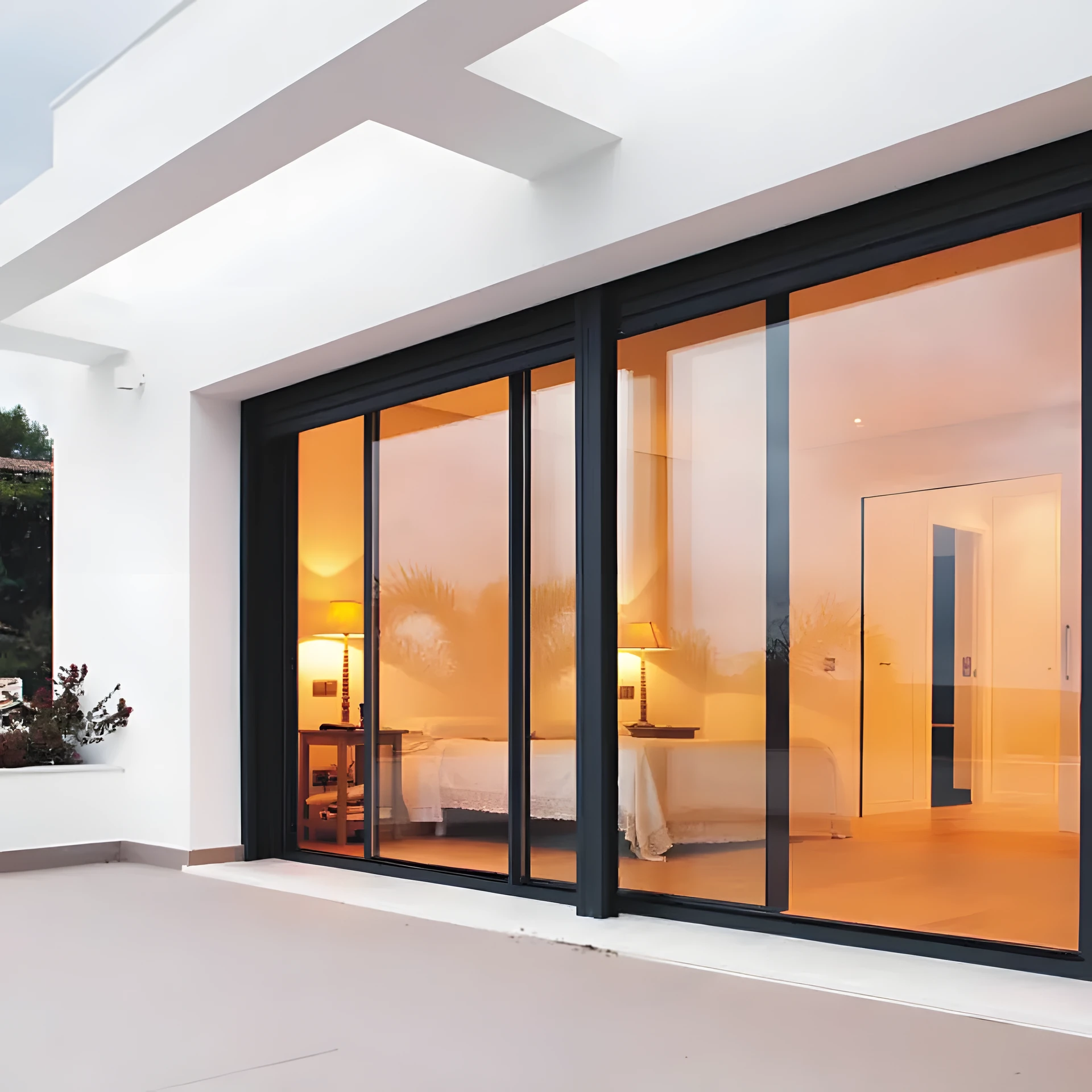

slimline sliding doors 10
slimline sliding patio doors sd20 slider 3@1440w Vision Glass Doors

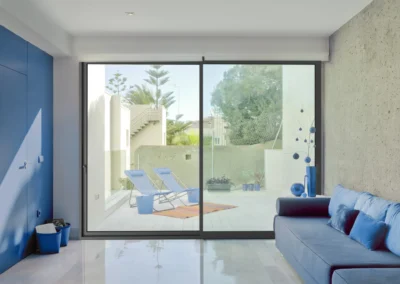

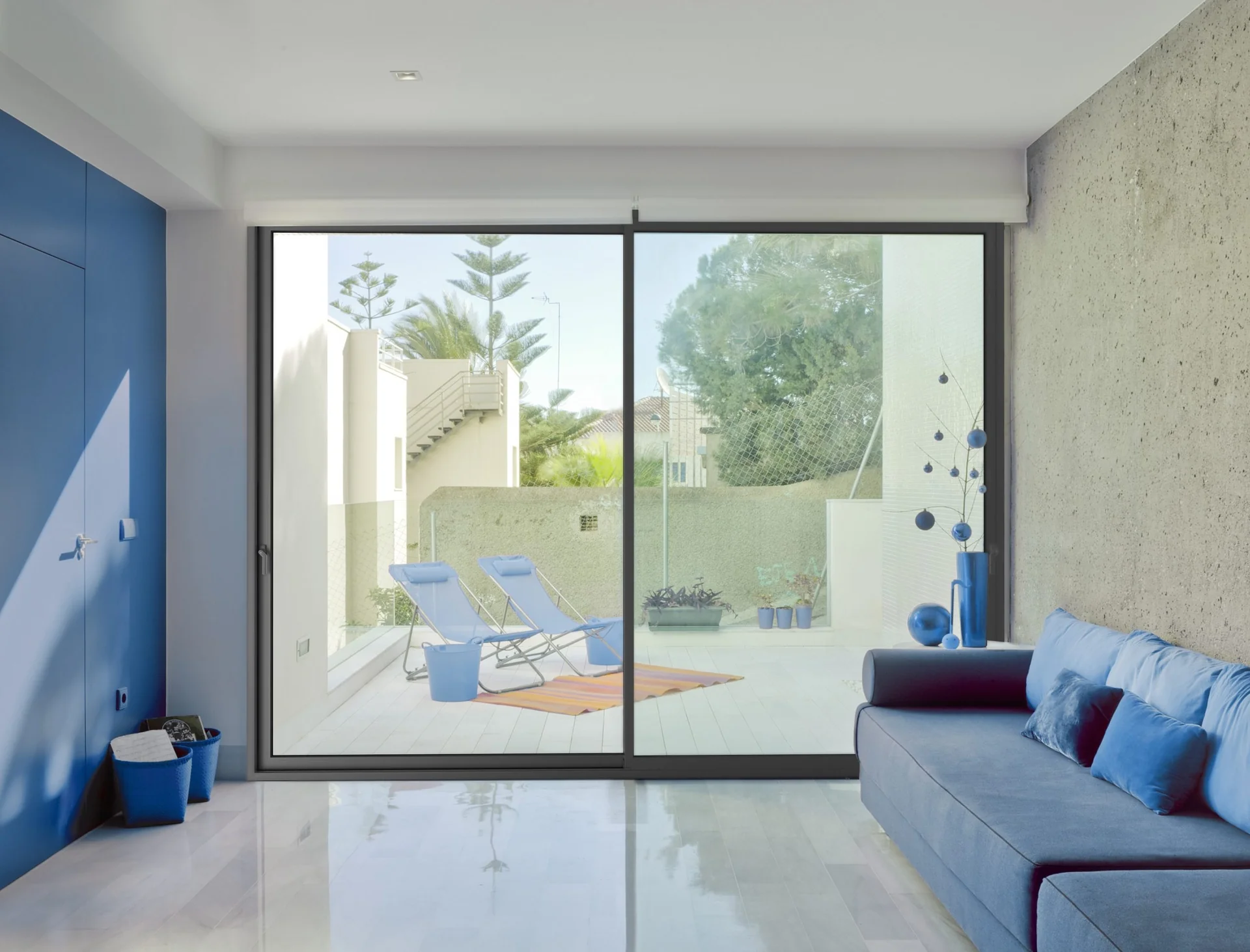

slimline sliding doors 11
slimline sliding doors 13

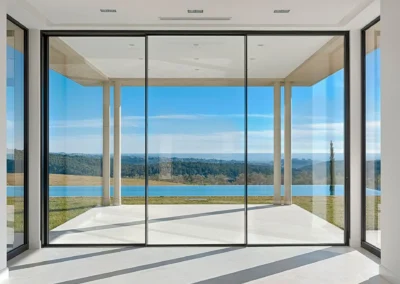

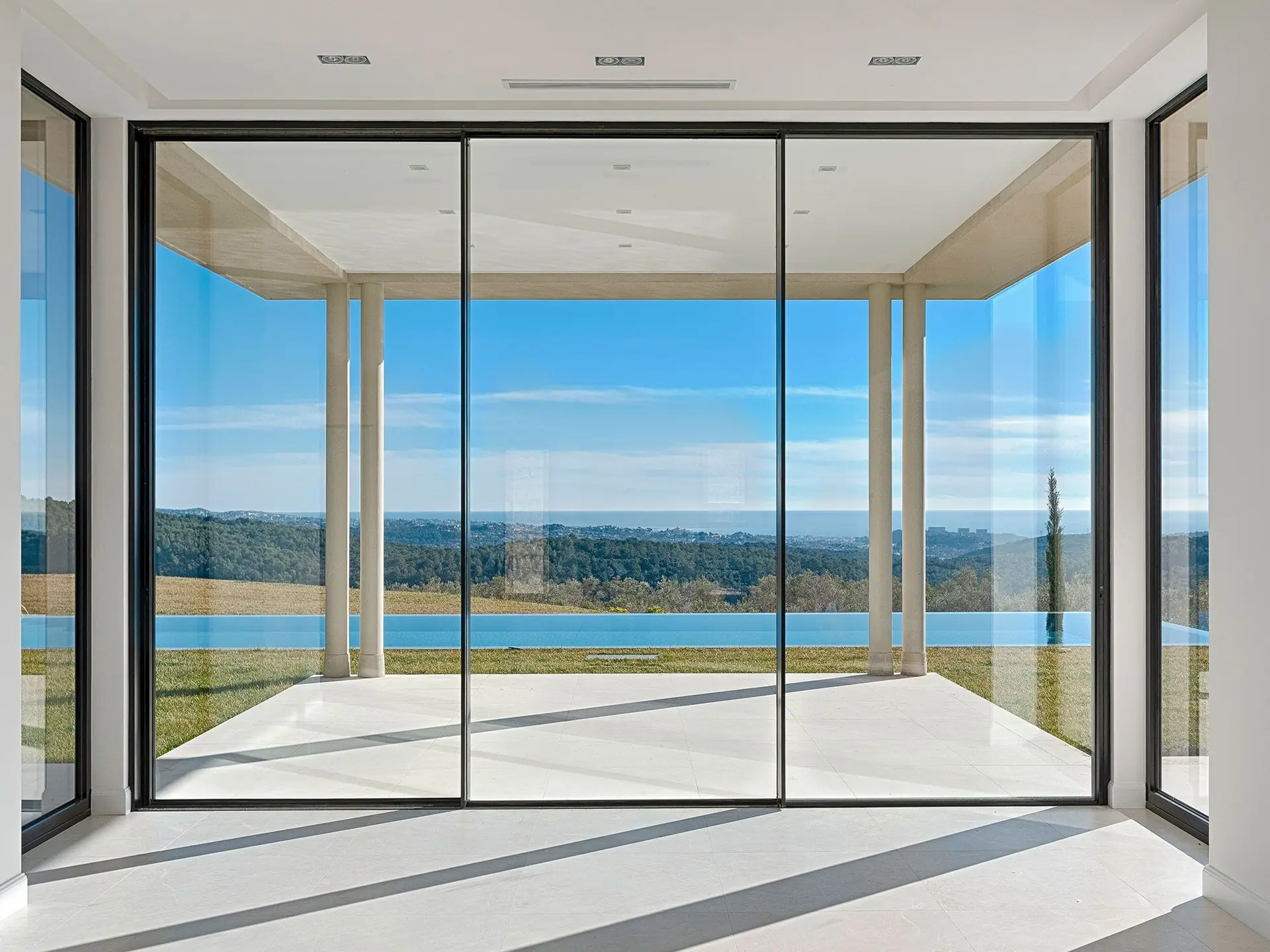

slimline sliding doors 16
Slimline sliding patio doors

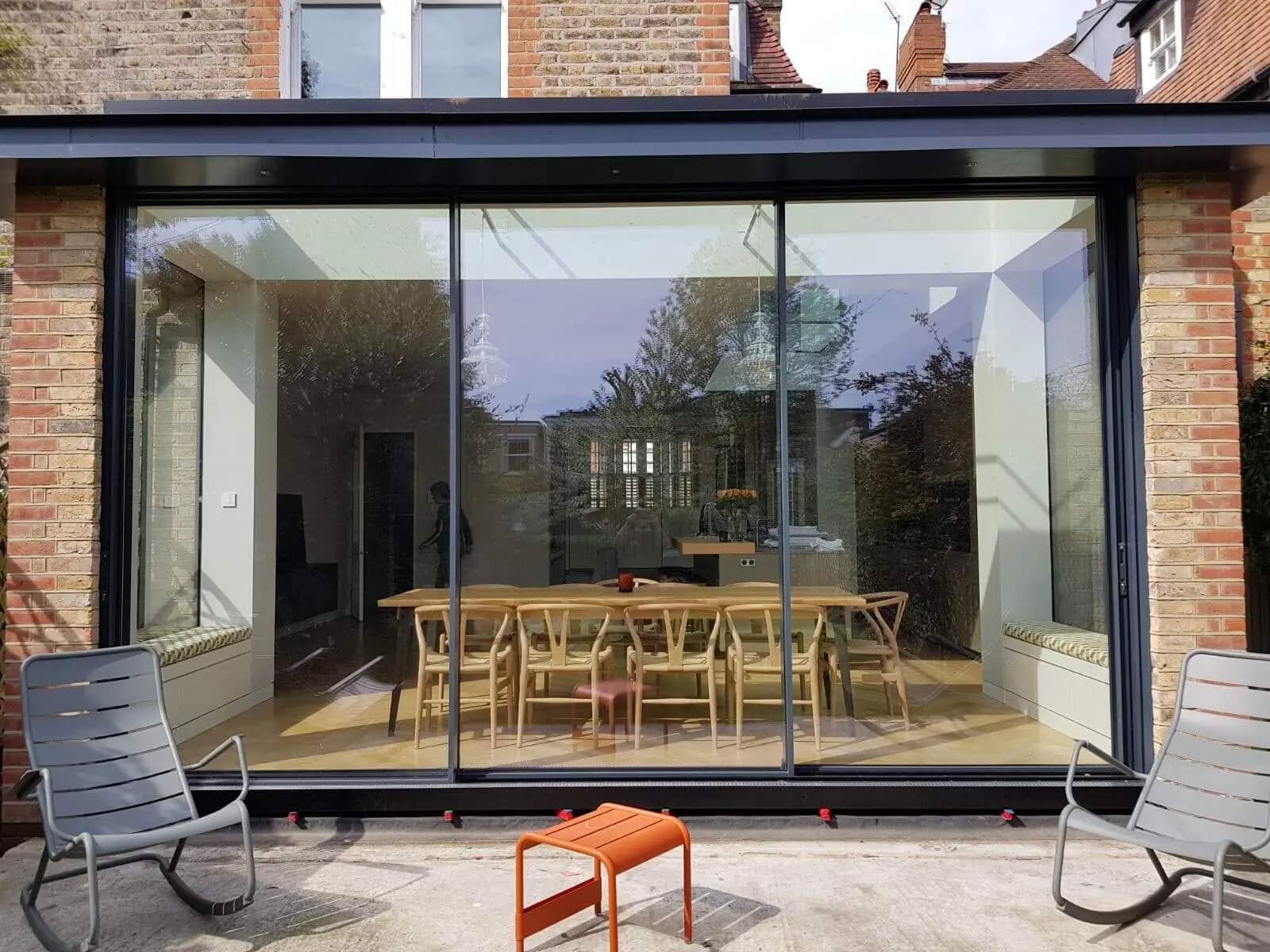

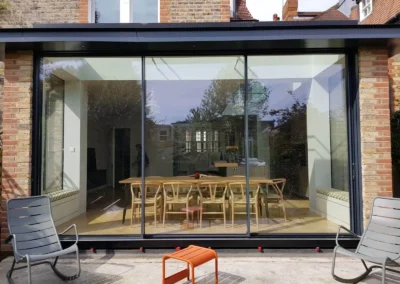

slimline sliding doors 20
slimline sliding doors 21

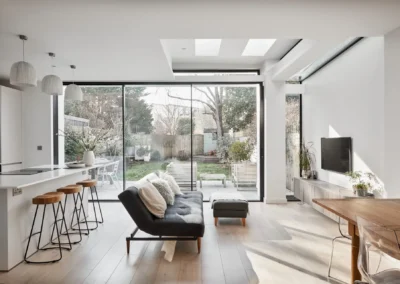

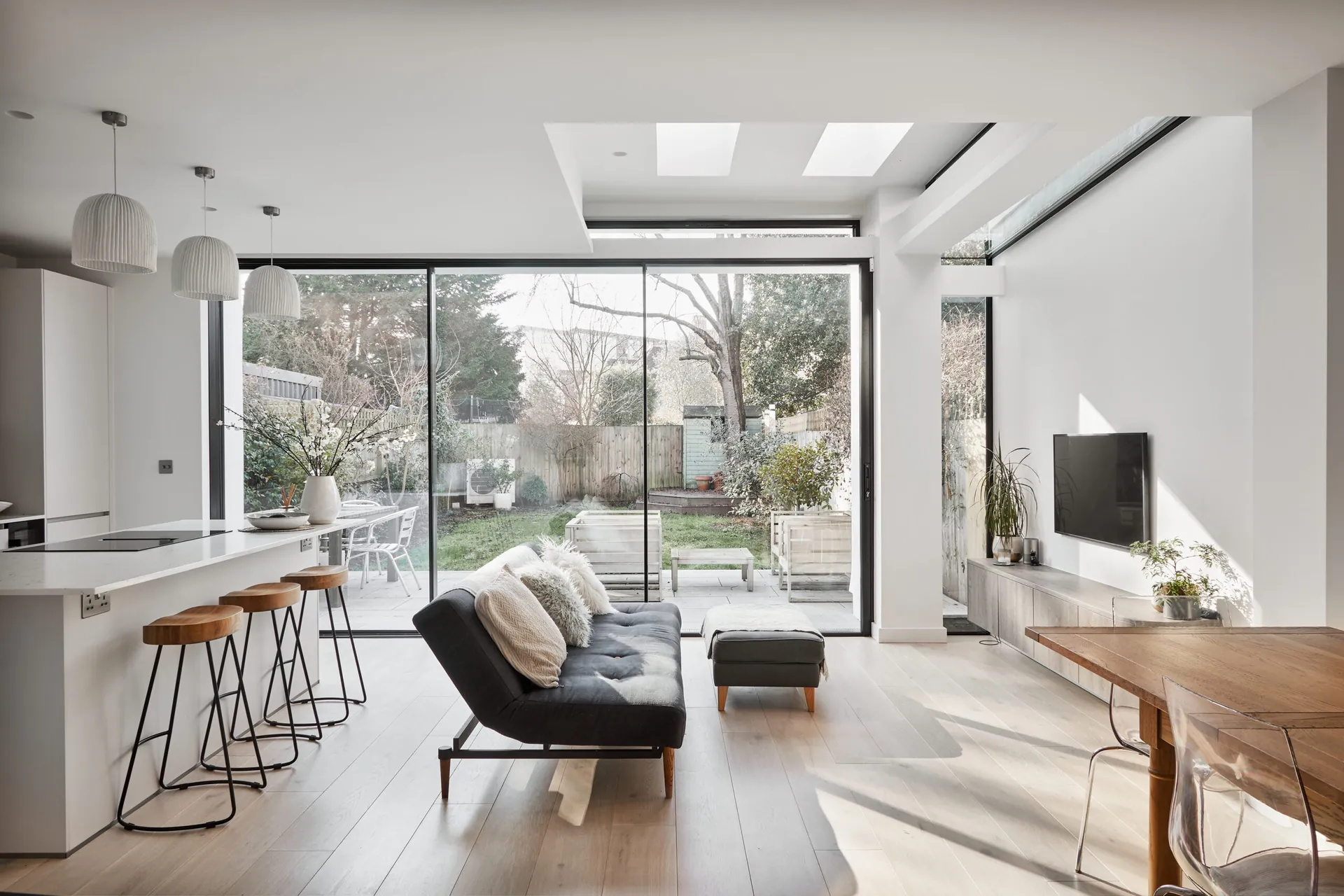

slimline sliding doors 32

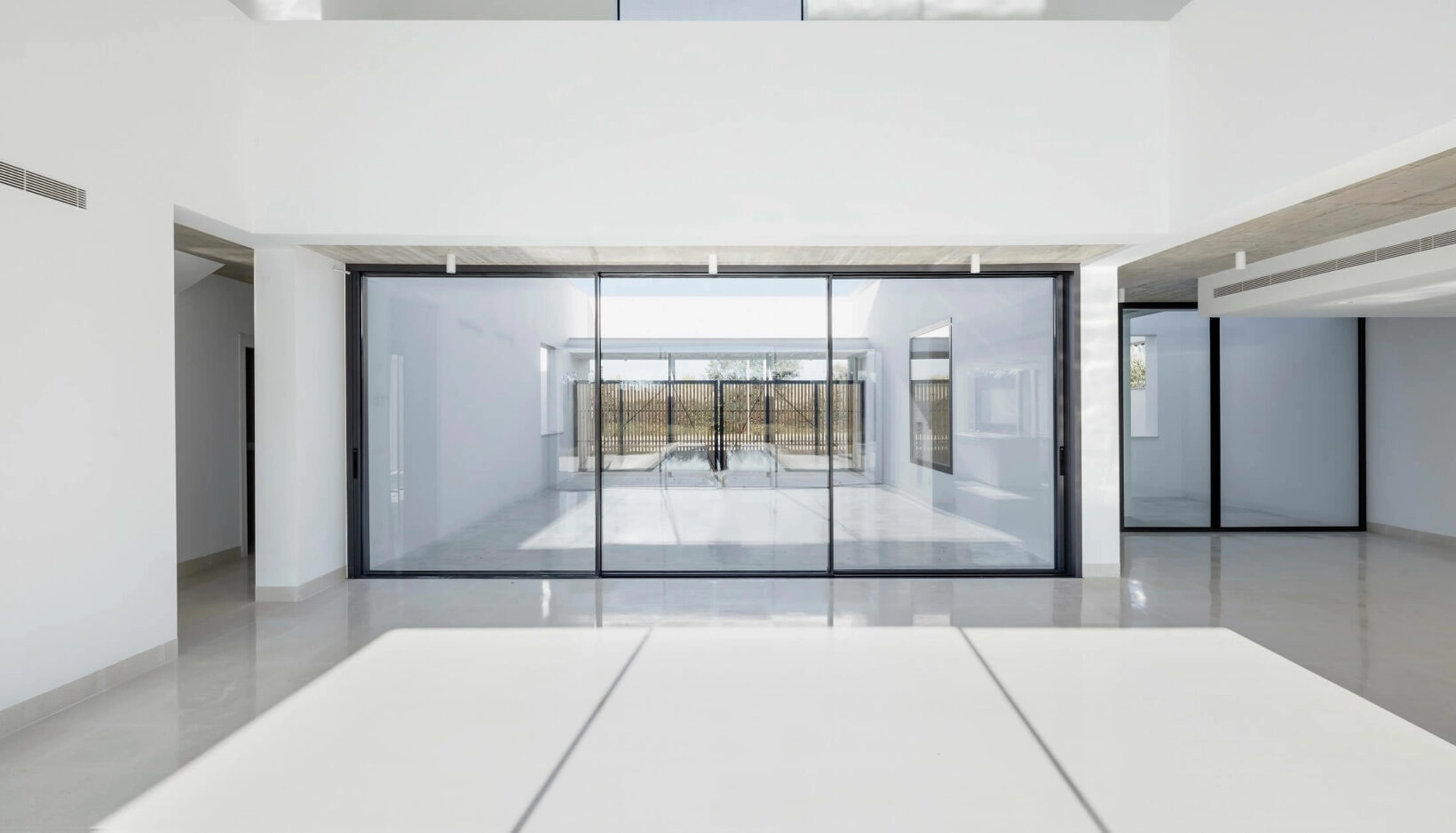

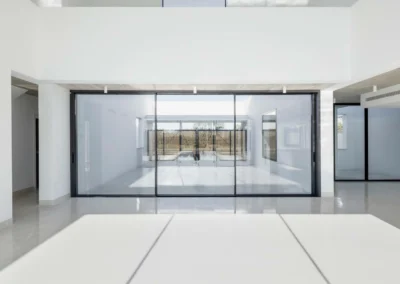

slimline sliding doors 23

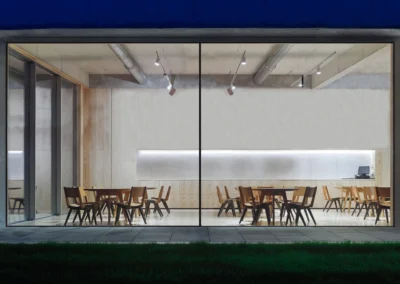

slimline sliding doors 24
slimline sliding doors 26
slimline sliding doors 27
slimline sliding doors 28

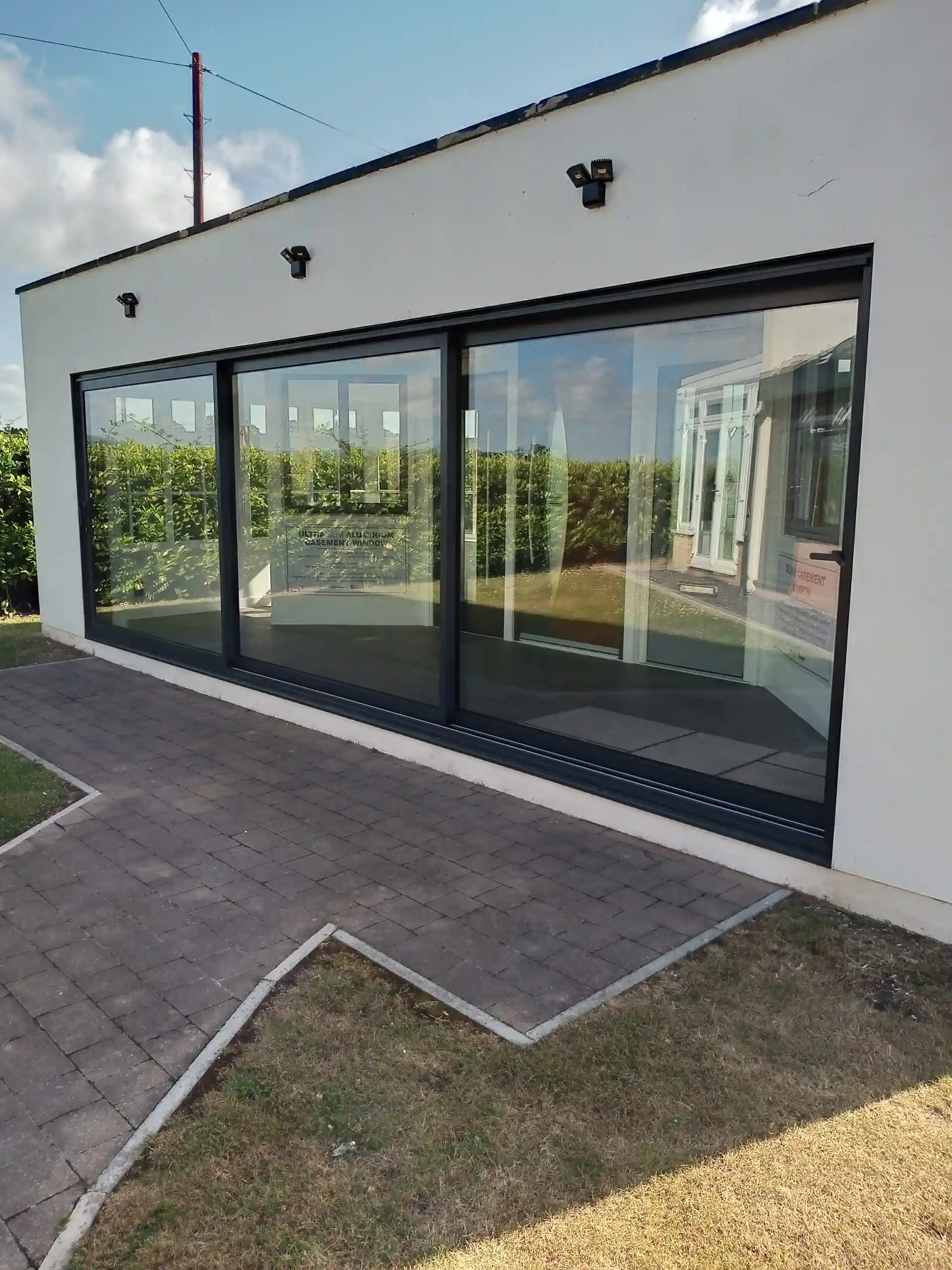

slimline sliding doors 29

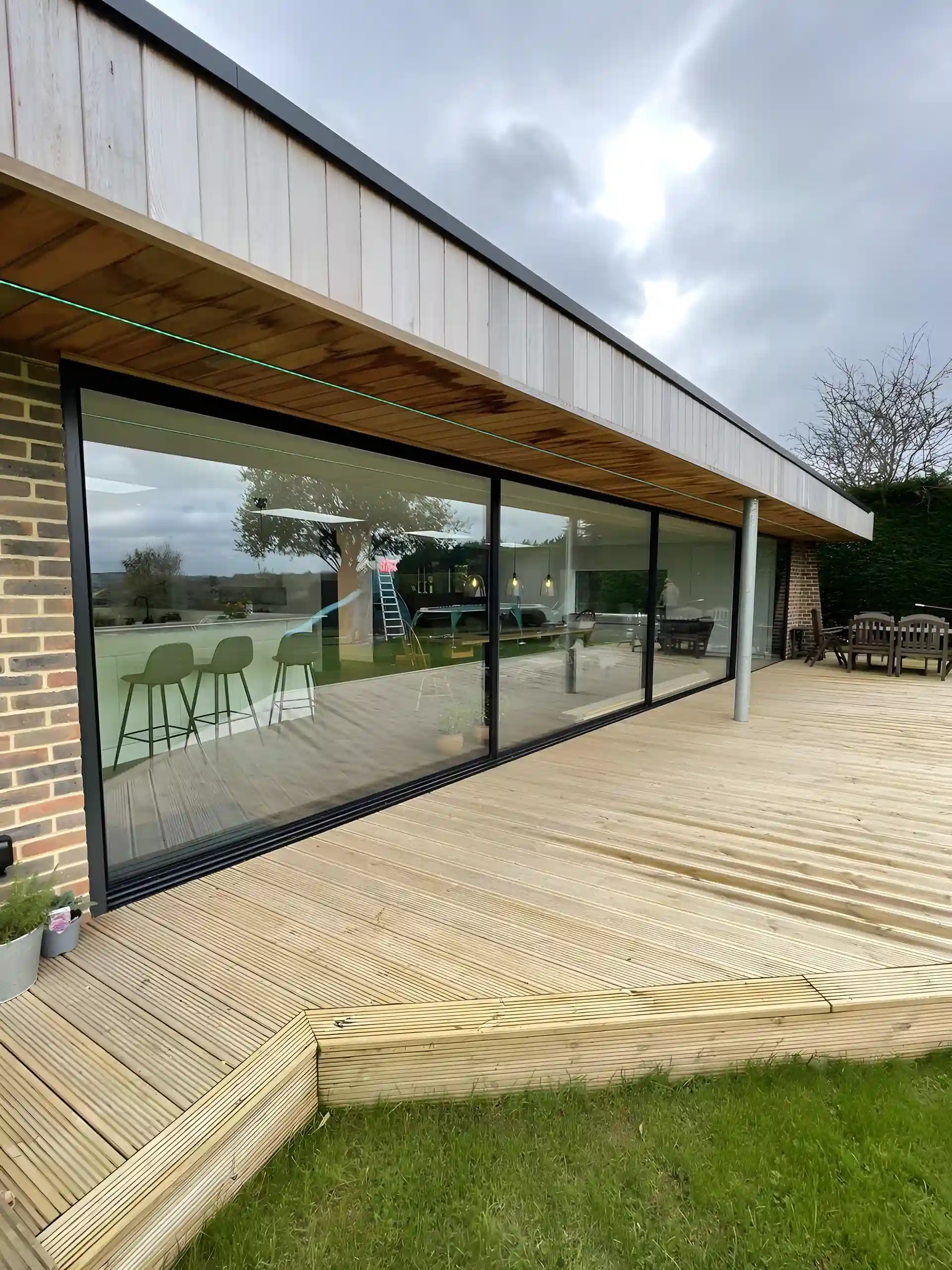

slimline sliding doors 30

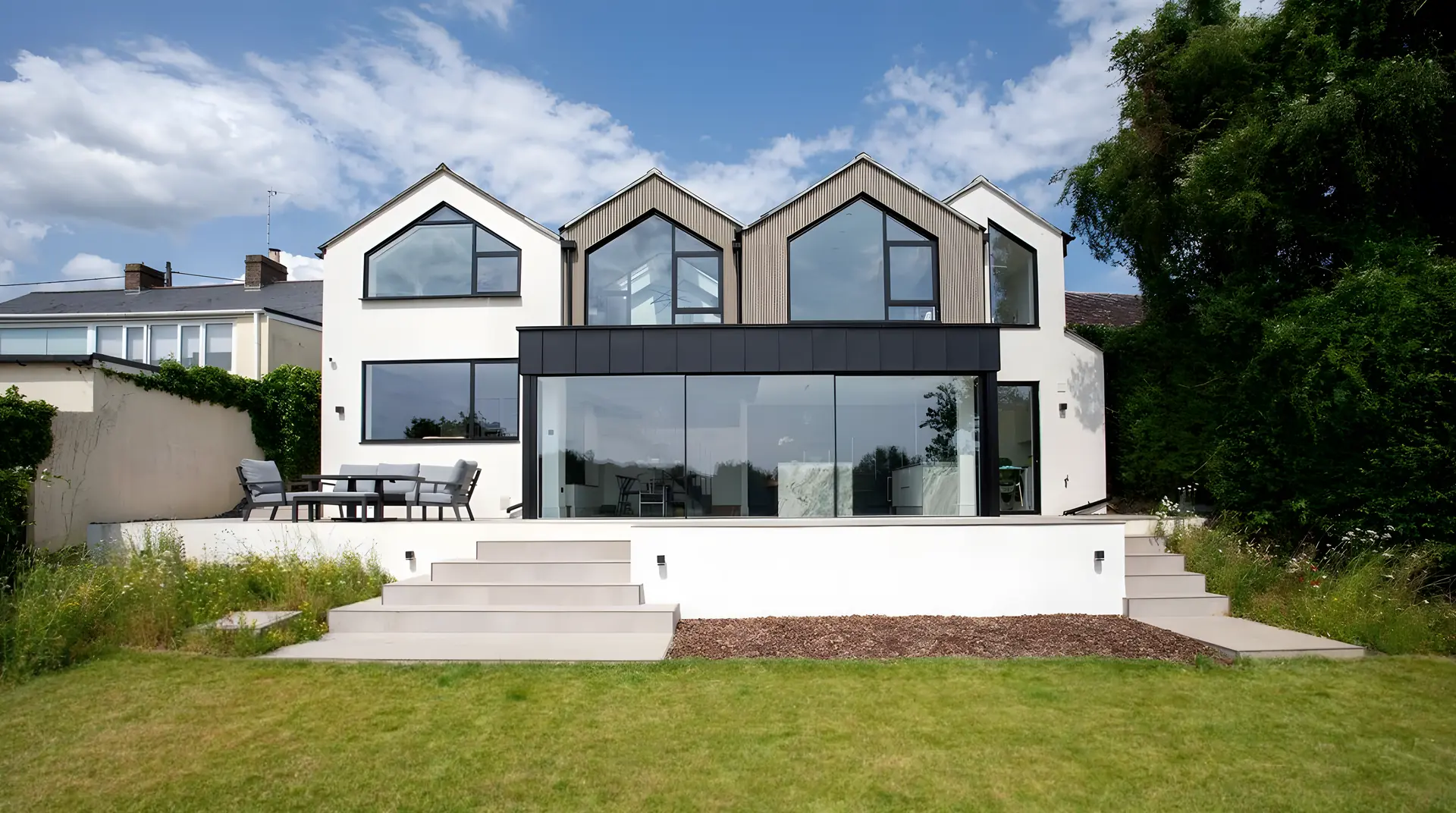

slimline sliding doors 31

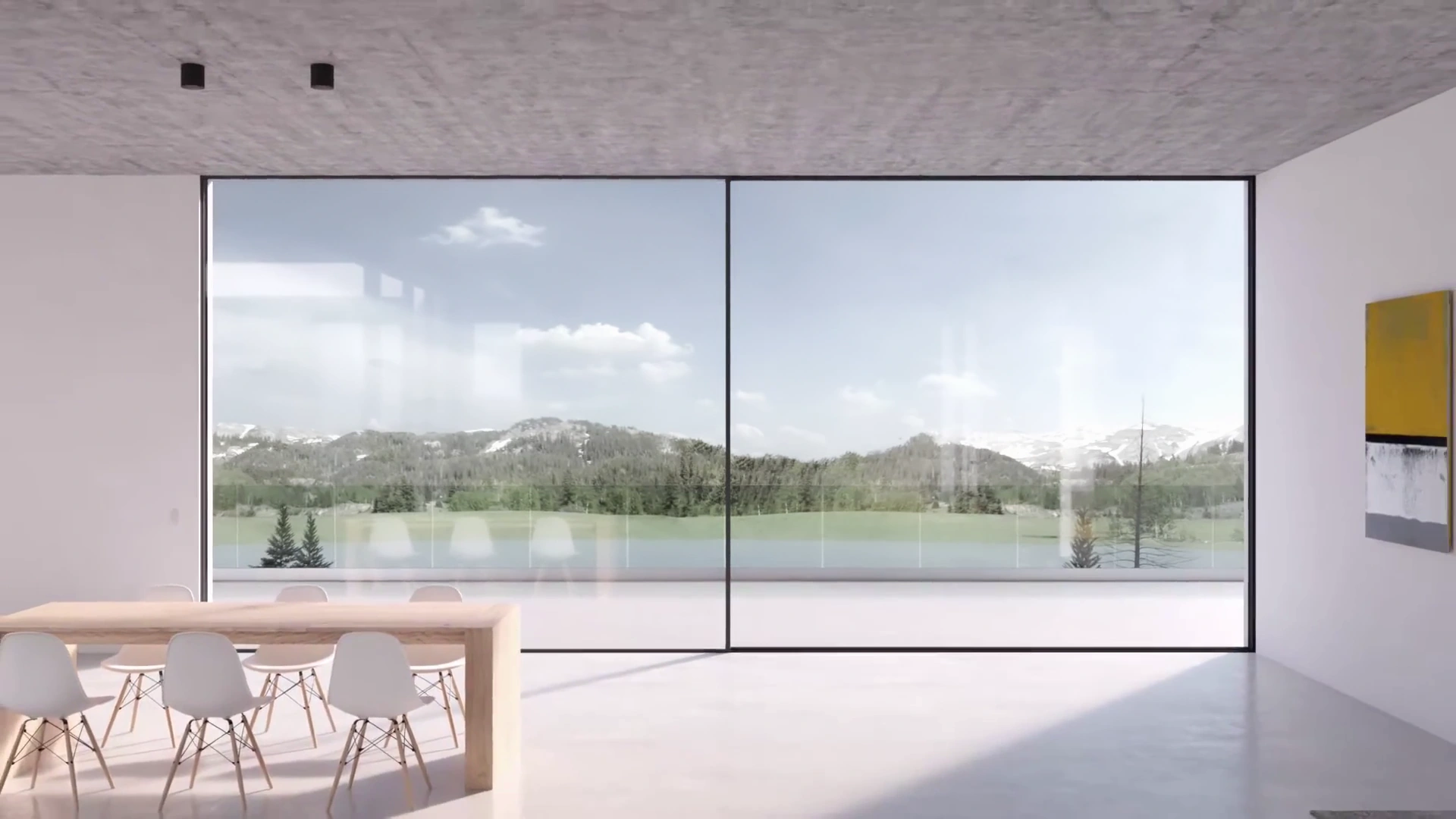

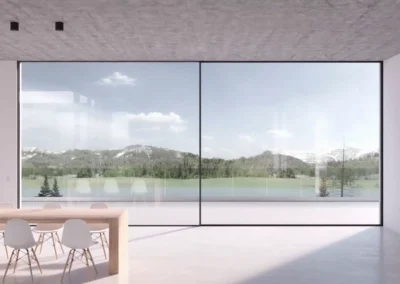

slimline sliding doors 33

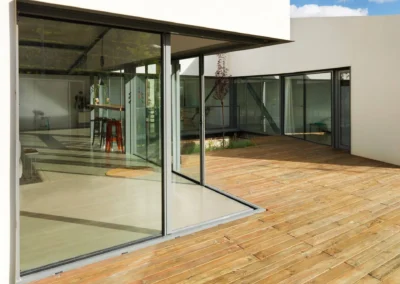

slimline sliding doors 15
